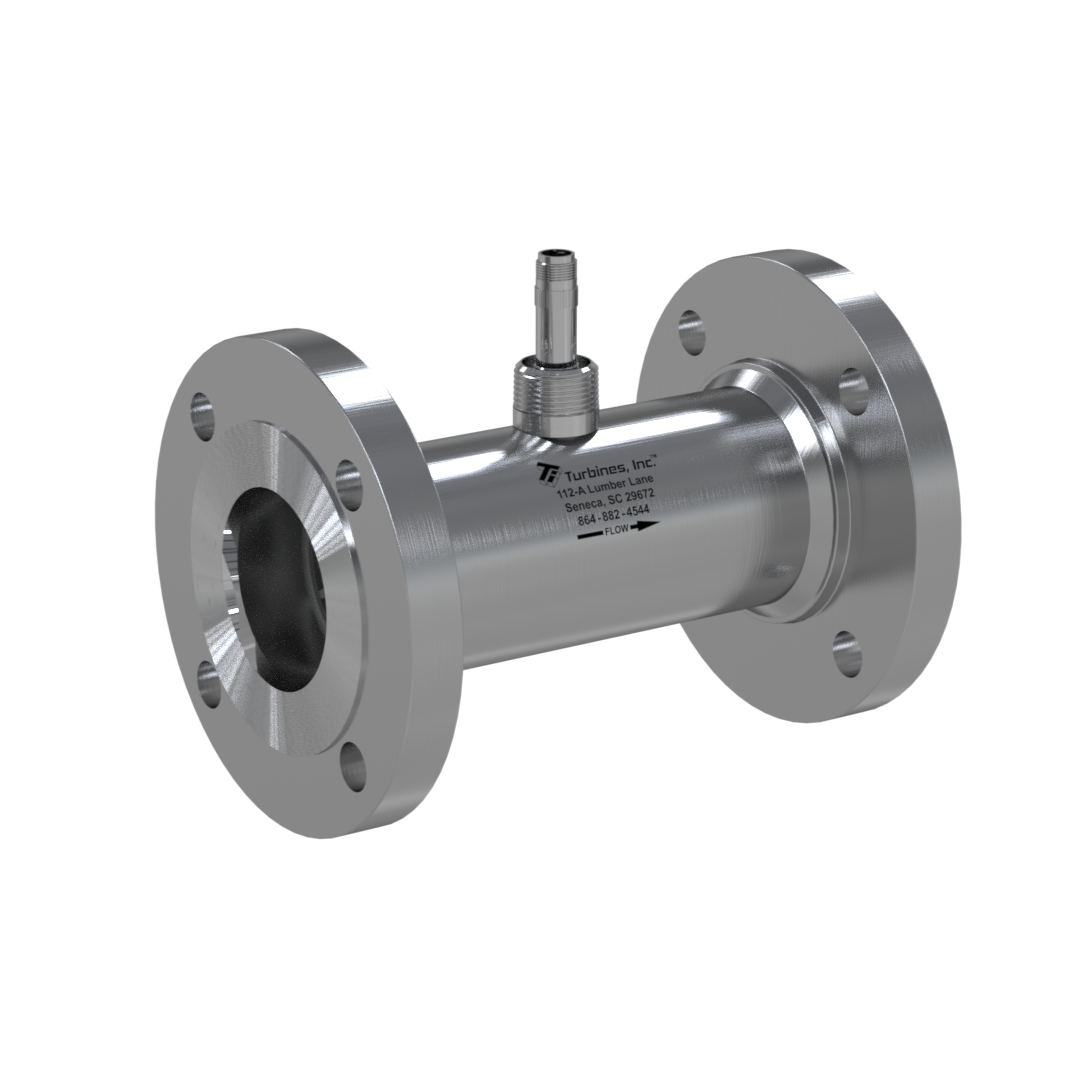

3" Gas Turbine Meter with 150# flanges, Hybrid Ceramic Ball Bearings with PGM Retainer, 316 SS construction, 17-4PH Rotor (40-650 acfm)
Unit of Measure
Brands |
N/A Turbines, Inc. |
Series |
N/A TMG |
Meter Inside Diameter (ID) |
N/A 3 in |
Process Connection Size |
N/A 3 in |
Process Connection |
N/A 150# Flange |
Flow Range |
N/A 40 to 650 acfm |
Bearing Material |
N/A Hybrid Ceramic |
Shaft Material |
N/A 316 Stainless Steel |
Housing Material |
N/A 316 Stainless Steel |
Rotor Material |
N/A 17-4PH |
| Linearity (±)1 | N/A 1 % |
Maximum Pressure |
N/A 275 psi |
Media Type |
N/A Gaseous |
Minimum Process Temperature |
N/A -450 ºF-268 ºC |
Maximum Process Temperature |
N/A 450 ºF232 ºC |
Lay Length |
N/A 10 in |
Weight |
N/A 26.5 lb |
OOS Lead Time |
N/A 10 Working Days |
Flow Monitors/Displays |
N/A
E110-P-01, E Series Battery or Loop Powered Flow Monitors ($1,401.80) E112-P-03, E Series Battery or Loop Powered Linearization Flow Monitors ($1,683.51) F012-P, F Series Union Mounting Flow Monitor ($606.77) F012-P-SM, F Series Swivel Mounting Flow Monitor ($648.76) |
Replacement Parts |
N/A
900212, 2.25 Inch (in) Coil Length and 330 Gauss Magnetization Variable Reluctance Coil ($147.77) 901045, 0.5000 x 0.2500 x 0.1250 Inch (in) PGM Retainer Ball Bearing with Ceramic Balls and 440C Raceways ($140.06) TMGK0300, TMG Series 40 to 650 Actual Cubic Feet per Minute (acfm) Flow Range Gas Internal Kit ($1,515.57) |
Typical Applications |
N/A
|
Expected Delivery |
N/A 1-2 Weeks |
- 1 Density Dependent
