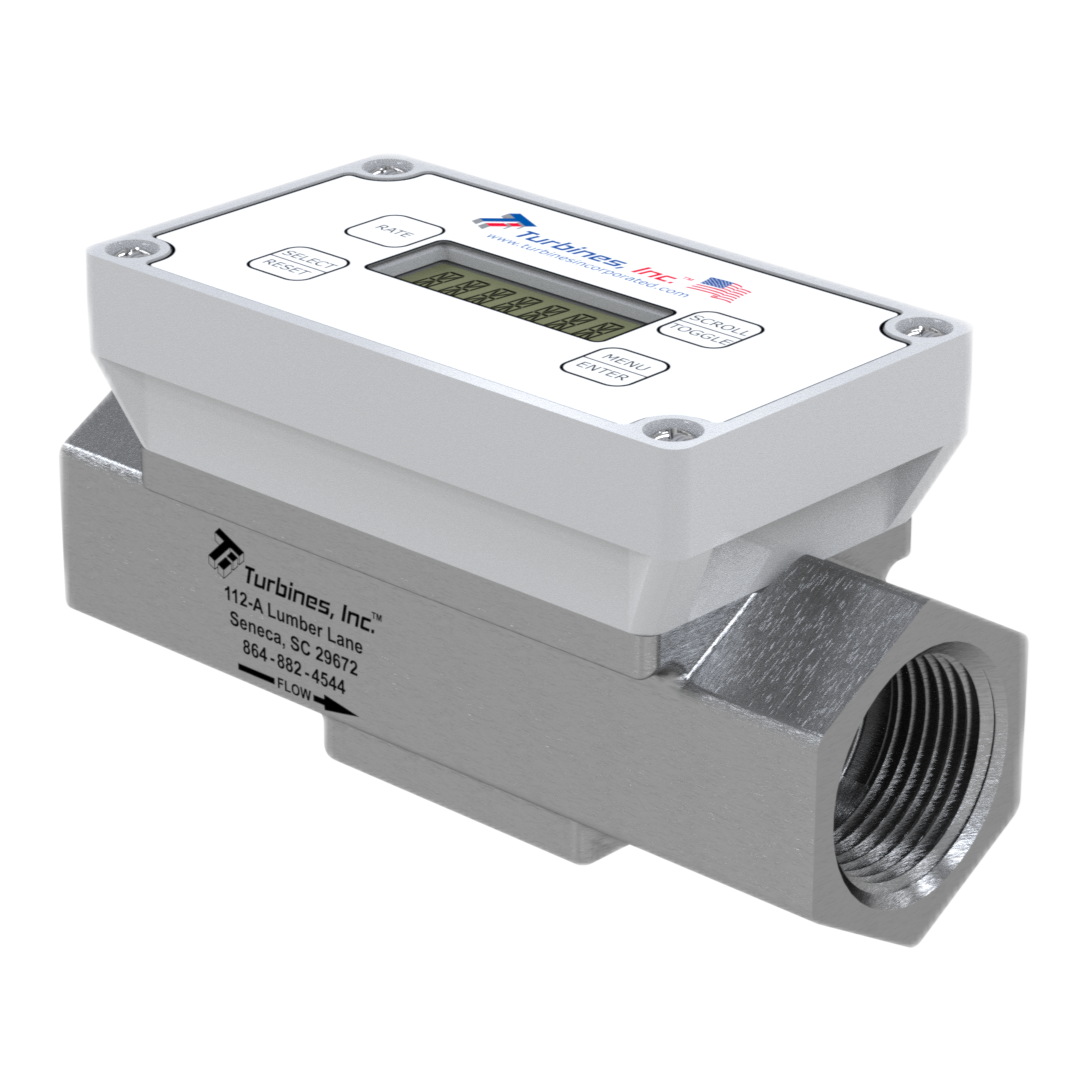

1" Integrated Turbine Meter & Flow Monitor with 1" FNPT ends, Tungsten Carbide Bearing and Shaft, 316 SS construction, CD4MCu Rotor (5-50 gpm)
Unit of Measure
Brands |
N/A Turbines, Inc. |
Series |
N/A ITM |
Meter Inside Diameter (ID) |
N/A 1 in |
Process Connection Size |
N/A 1 in |
Process Connection |
N/A Female National Pipe Thread (FNPT) |
Flow Range |
N/A 5 to 50 gpm |
Bearing Material |
N/A Tungsten |
Shaft Material |
N/A Tungsten |
Housing Material |
N/A 316 Stainless Steel |
Rotor Material |
N/A CD4MCu |
Linearity (±) |
N/A 1 % |
Maximum Pressure |
N/A 5000 psi |
Media Type |
N/A Liquid |
Minimum Process Temperature |
N/A -22 ºF-30 ºC |
Maximum Process Temperature |
N/A 150 ºF66 ºC |
Lay Length |
N/A 5.5 in |
Weight |
N/A 4 lb |
OOS Lead Time |
N/A 10 Working Days |
Accessories |
N/A
TK0100, 1 Inch (in) Meter Inside Diameter (ID) and 5 to 50 Gallons per Minute (gpm) Flow Range Turbine Internal Kit ($230.00) |
Typical Applications |
N/A
|
Expected Delivery |
N/A 1-2 Weeks |
