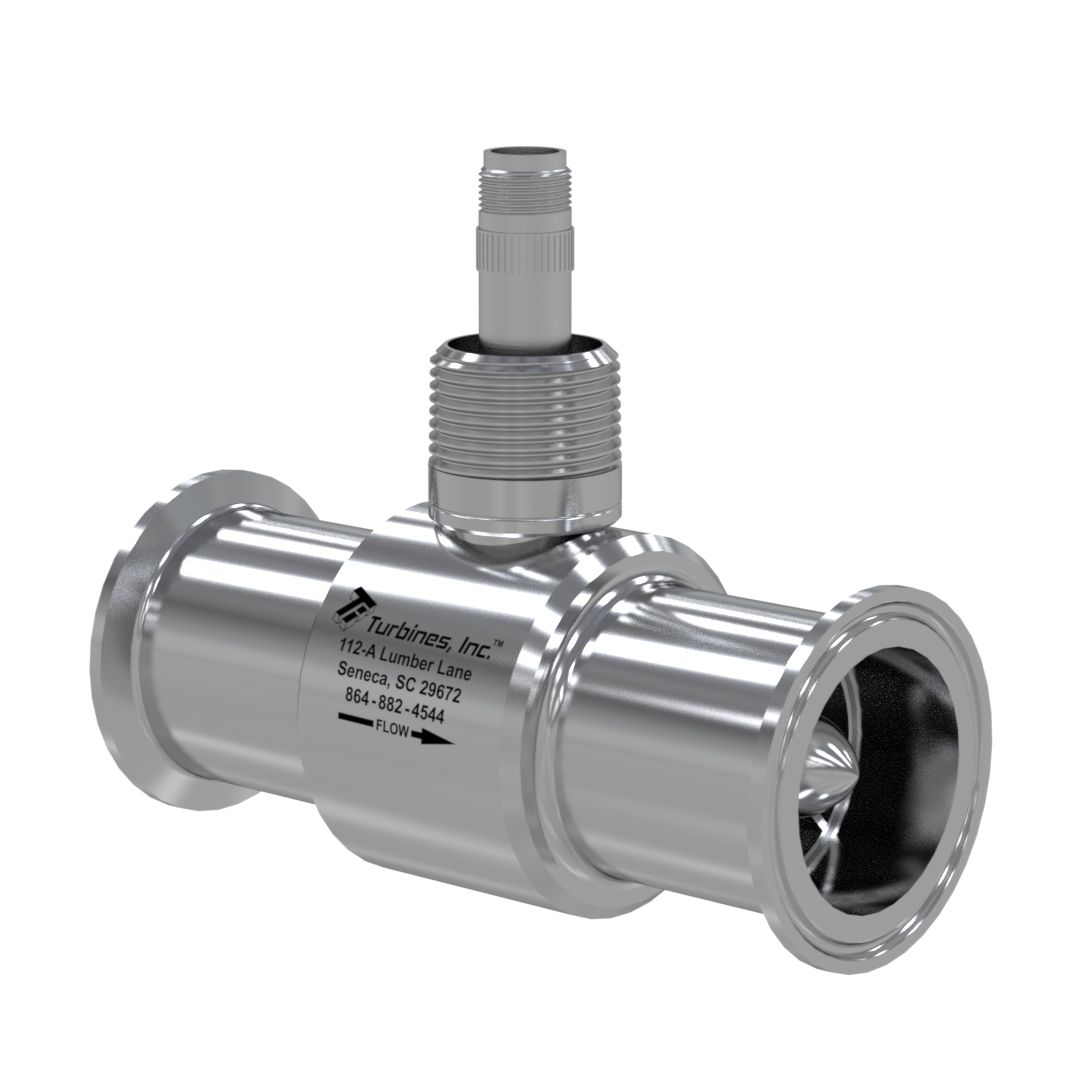

1-1/2" 3A Sanitary Turbine Meter with 1-1/2" Sanitary Connections, M100 Sleeve Bearing, 316 SS construction, 17-4PH Rotor (8-130 gpm)
Unit of Measure
Brands |
N/A Turbines, Inc. |
Series |
N/A TMSA |
Meter Inside Diameter (ID) |
N/A 1-1/2 in |
Process Connection Size |
N/A 1-1/2 in |
Process Connection |
N/A Sanitary |
Flow Range |
N/A 8 to 130 gpm |
Bearing Material |
N/A Hard Carbon Composite |
Shaft Material |
N/A Liquid |
Housing Material |
N/A 316 Stainless Steel |
Rotor Material |
N/A 17-4PH |
Linearity (±) |
N/A 0.5 % |
Maximum Pressure |
N/A 1500 psi |
Media Type |
N/A Liquid |
Minimum Process Temperature |
N/A -100 ºF-73 ºC |
Maximum Process Temperature |
N/A 450 ºF232 ºC |
Lay Length |
N/A 4.590 in |
Weight |
N/A 3 lb |
OOS Lead Time |
N/A 20 Working Days |
Accessories |
N/A
900086, 2.75 Inch (in) Coil Length and 1000 Gauss Magnetization Variable Reluctance Coil ($140.19) TKSA0150-3A-G, TMSA Series 1-1/2 Inch (in) Meter Inside Diameter (ID) Sanitary Internal Kit ($1,566.34) |
Typical Applications |
N/A
|
Expected Delivery |
N/A 1-2 Weeks |
