Natural Gas Flow Meters
In the natural gas industry, precise flow measurement is vital for monitoring natural gas production, power generation turbines, boilers and heating. The TMG Series meters deliver reliable flow data from 0.5 to 12,000acfm, temperatures up to 850°F, and pressures up to 20,000psi. Each gas meter is provided with a NIST gas traceable calibration to assure optimal performance for your application.
Flow Meters For Natural Gas

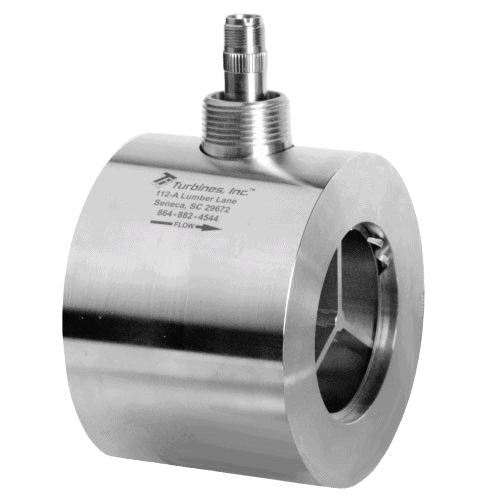

Slim Line Gas Meter (SLGM)
| Linearity | +/- 1.0% over standard flow range (density dependent) |
| Repeatability | +/- 0.1% over standard flow range |
| Flow Rate | 0.5 to 250 ACFM |
| Operating Temperature | -450° F to +450° F (850° F with special coil) |
| Operating Pressure | Up to 3,700 psig, subject to process piping capacity provided by others |
| Materials | |
| Meter Body | 316 Stainless steel (consult factory for other options) |
| Rotor | 17-4PH Stainless steel (consult factory for other options) |
| Bearings | 440C Stainless steel ball bearings with self-lubricating retainer |
| Additional Information | Full line of Retrofit Kits are available Factory refurbishment available |
| Connections | Wafer style |
| Certifications | CRN Certified , ISO 9001, NIST traceable calibration |
Turbine Meter Gas (TMG)
| Linearity | +/- 1.0% over standard flow range (density dependent) |
| Repeatability | +/- 0.1% over standard flow range |
| Flow Rate | 0.5 to 12,000 ACFM |
| Operating Temperature | -450° F to +450° F (850° F with special coil) |
| Operating Pressure | Up to 3,700 psig, subject to process piping capacity provided by others |
| Materials | |
| Meter Body | 316 Stainless steel (consult factory for other options) |
| Rotor | 17-4PH Stainless steel (consult factory for other options) |
| Bearings | 440C Stainless steel ball bearings with self-lubricating retainer |
| Additional Information | Full line of Retrofit Kits are available Factory refurbishment available |
| Connections | Grooved, NPT, flanged, or wafer (consult factory for other options) |
| Certifications | CRN Certified , ISO 9001, NIST traceable calibration |
