Flow meters are essential devices used to measure the flow rate of liquids and gases in various industries. From simple domestic water flow measurement to complex industrial processes, these instruments help ensure accuracy, efficiency, and safety. However, not all flow meters are created equal. They come in many types, each with its unique working principle, strengths, and limitations. In this comprehensive guide, we will explore the most common types of flow meters, their applications, and what makes each of them unique.
Why Flow Meters Matter
Before diving into the types of flow meters, it is important to understand why accurate flow measurement matters. Flow meters are crucial for:
- Process control: Ensuring consistent flow rates in manufacturing processes.
- Quality assurance: Maintaining product standards in industries like pharmaceuticals and food production.
- Energy management: Monitoring fuel and energy consumption in plants.
- Environmental compliance: Tracking emissions and wastewater flow to meet regulatory requirements.
Choosing the right flow meter for a specific application can make a significant difference in terms of efficiency, safety, and cost savings.

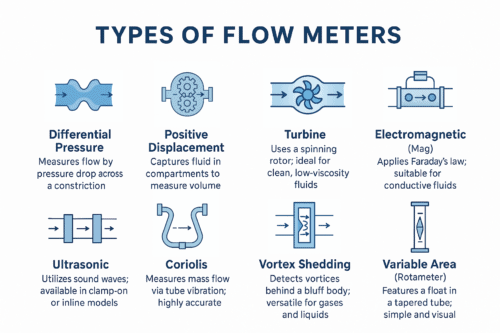

1. Differential Pressure Flow Meters
Differential pressure (DP) flow meters are among the most commonly used types. They operate based on the principle that a fluid passing through a constriction causes a drop in pressure. The flow rate is proportional to this pressure difference. There are several variations within this category:
Orifice Plates
Orifice plate flow meters are simple devices where a thin plate with a hole is placed in the flow path. The pressure difference across the orifice is measured and used to calculate the flow rate. They are inexpensive and widely used in industries like oil and gas.
Venturi Tubes
Venturi tubes create a smooth constriction that reduces pressure loss and improves accuracy compared to orifice plates. They are commonly used for applications requiring minimal pressure drop, such as in water treatment plants.
Flow Nozzles
Flow nozzles combine the features of orifice plates and Venturi tubes, offering a compromise between simplicity and performance. They are often used in steam and gas flow measurement.
Advantages: Simple design, cost-effective, suitable for high-pressure and high-temperature applications.
Disadvantages: Pressure loss, accuracy affected by installation conditions, limited to clean fluids.
2. Positive Displacement Flow Meters
Positive displacement (PD) flow meters work by trapping a fixed amount of fluid and counting the number of times the chamber fills and empties. These meters are highly accurate and suitable for measuring viscous liquids.
Gear Meters
Gear meters use two interlocking gears that rotate as liquid passes through. The rotation is proportional to the volume of liquid, making them ideal for high-viscosity fluids like oils and syrups.
Piston Meters
Piston meters use reciprocating pistons to displace fixed volumes of liquid. They are commonly used in fuel dispensing and small-scale applications.
Rotary Vane Meters
Rotary vane meters use rotating vanes inside a chamber to measure liquid flow. They offer good accuracy and are used in applications like chemical dosing.
Advantages: High accuracy, good for viscous and clean fluids, unaffected by changes in fluid density.
Disadvantages: Moving parts subject to wear, limited to clean fluids, not suitable for high flow rates.
3. Turbine Flow Meters
Turbine flow meters use a rotor placed in the flow stream. The fluid flow causes the rotor to spin, and the rotational speed is proportional to the flow rate. A pickup sensor counts the rotor’s rotations to calculate the flow.
These meters are widely used in applications such as petroleum products, water distribution, and chemical processing.
Advantages: High accuracy, wide flow range, low-pressure drop, suitable for clean and low-viscosity liquids.
Disadvantages: Susceptible to wear and damage from debris, not ideal for high-viscosity fluids, performance affected by flow profile.
4. Electromagnetic Flow Meters
Electromagnetic (or mag) flow meters work on Faraday’s law of electromagnetic induction. When a conductive fluid passes through a magnetic field, it induces a voltage proportional to the flow velocity. Electrodes placed in the pipe wall measure this voltage to determine the flow rate.
Mag meters are ideal for water, wastewater, slurries, and corrosive liquids.
Advantages: No moving parts, minimal maintenance, highly accurate, suitable for dirty and corrosive fluids.
Disadvantages: Only works with conductive fluids, requires a power source, higher initial cost.
5. Ultrasonic Flow Meters
Ultrasonic flow meters use sound waves to measure flow. There are two main types:
Transit-Time Ultrasonic Meters
These meters send ultrasonic pulses upstream and downstream. The difference in transit times of the pulses is proportional to the flow velocity. They are best suited for clean liquids and gases.
Doppler Ultrasonic Meters
Doppler meters measure the frequency shift of ultrasonic waves reflected by suspended particles or bubbles in the flow. They are ideal for dirty or aerated fluids.
Advantages: Non-intrusive, no pressure loss, works with a wide range of fluids, suitable for large pipe diameters.
Disadvantages: Accuracy depends on fluid properties, requires proper installation and calibration, higher cost.
6. Coriolis Flow Meters
Coriolis flow meters measure mass flow rather than volumetric flow. They use the Coriolis effect, where a vibrating tube through which fluid flows is twisted proportionally to the mass flow rate. Sensors measure this twist to determine the flow.
These meters are used in industries where precise mass flow measurement is critical, such as in chemical processing and pharmaceuticals.
Advantages: Direct mass flow measurement, high accuracy, works with a wide range of fluids, measures density and temperature simultaneously.
Disadvantages: High cost, sensitive to vibrations, requires careful installation.
7. Vortex Flow Meters
Vortex flow meters use the principle of vortex shedding. When a fluid flows past a bluff body (a non-streamlined object), vortices are created downstream. The frequency of these vortices is proportional to the flow velocity.
These meters are used for liquids, gases, and steam in industries like HVAC, chemical processing, and energy.
Advantages: No moving parts, suitable for a wide range of fluids, relatively low maintenance.
Disadvantages: Accuracy affected by low flow rates and pulsating flow, requires a stable flow profile, moderate pressure loss.
8. Thermal Mass Flow Meters
Thermal mass flow meters measure the mass flow of gases based on heat transfer. They use a heated sensor in the flow stream and measure the cooling effect of the gas flowing past it. The amount of heat lost is proportional to the mass flow rate.
These meters are commonly used for gas flow measurement in industries such as semiconductor manufacturing and environmental monitoring.
Advantages: Direct mass flow measurement of gases, no moving parts, good for low-flow applications.
Disadvantages: Sensitive to changes in gas composition, not suitable for liquids, affected by ambient temperature changes.
Choosing the Right Flow Meter
With so many options available, how do you choose the right flow meter for your application? Here are some key factors to consider:
- Fluid Type: Is it liquid or gas? Is it conductive, viscous, or contains particles?
- Accuracy Requirements: How precise does the measurement need to be?
- Flow Range: What is the minimum and maximum flow rate?
- Installation Conditions: Are there space constraints, vibration, or pressure drop considerations?
- Budget: What is the total cost of ownership, including purchase, installation, and maintenance?
No single flow meter works best for every situation. For example, electromagnetic flow meters are excellent for dirty water, but not suitable for hydrocarbons. Turbine meters offer high accuracy for clean liquids, but may suffer from wear in abrasive applications. Coriolis meters are unbeatable for mass flow measurement, but they come with a higher price tag.
Conclusion
Flow meters play a critical role in a vast array of industries. Understanding the different types of flow meters, their working principles, and their pros and cons can help you select the most suitable one for your specific needs. Whether you are measuring water, fuel, gases, or chemicals, there is a flow meter designed for your application.
