Cryogenic Proving System TPS1500
The TPS1500 Cryogenic Prover is a secondary calibration standard used to verify existing calibration data and calculate the amount of measurement error in an existing system.
- Specifications
Amplifier Input: Frequency range: 0-2500 Hz
Sensitivity:
- 15mv RMS @ 10 Hz (min)
- 100mv RMS @ 500 Hz (min)
- 400mv RMS @ 2.5 KHz (min)
Noise immunity: High frequency roll off, FCO @ 2.5 KHzSensor Inputs: Temperature probes: Product Sensor:
- 1000 ohm platinum 2 wire RTD probe; .00385Ω/ΩºC European din curve
Pressure transducer: 2 wire 4-20mA; loop excitationOutputs: Keypad: 16 button keypad, ON/OFF button. Oil resistant, sealed Display: 2x16 character backlit LCD. Power: External: 120Vac Plug-in or 12Vdc battery hookup options, 1a fuse Physical & Environmental: Operating Temperature: -40 to 85°C
Storage -65 to 125°C
Humidity: 5-95% non-condensing
Dimensions: 24 x 19 x 9
Weight: 30lbs
Miscellaneous: Contained in a shippable enclosure
Sensor Resolution: - RTD - 0.04 ohms approx.
- Loop- 0.006mA approx.
Overall Error: 0.001% max (excludes uncertainty of temperature & pressure probe) Features: Portable calibration system
Printed tickets with all calibration data
Selectable products
Selectable engineering units
- Description

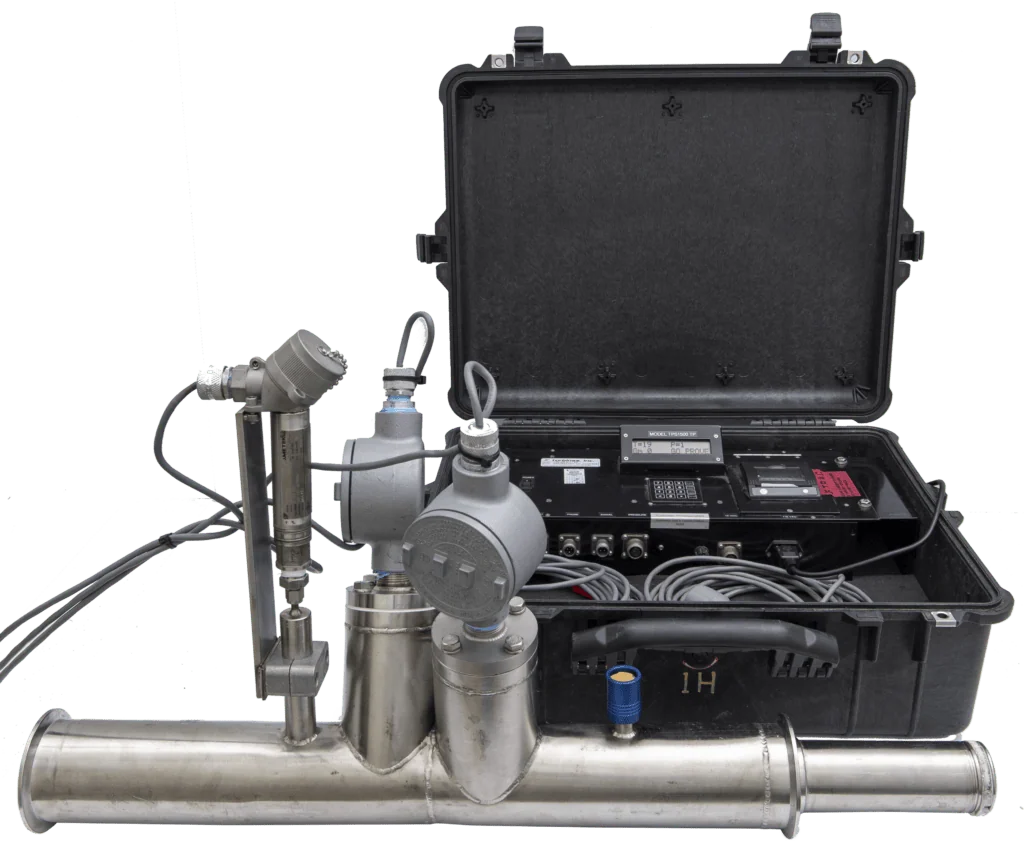

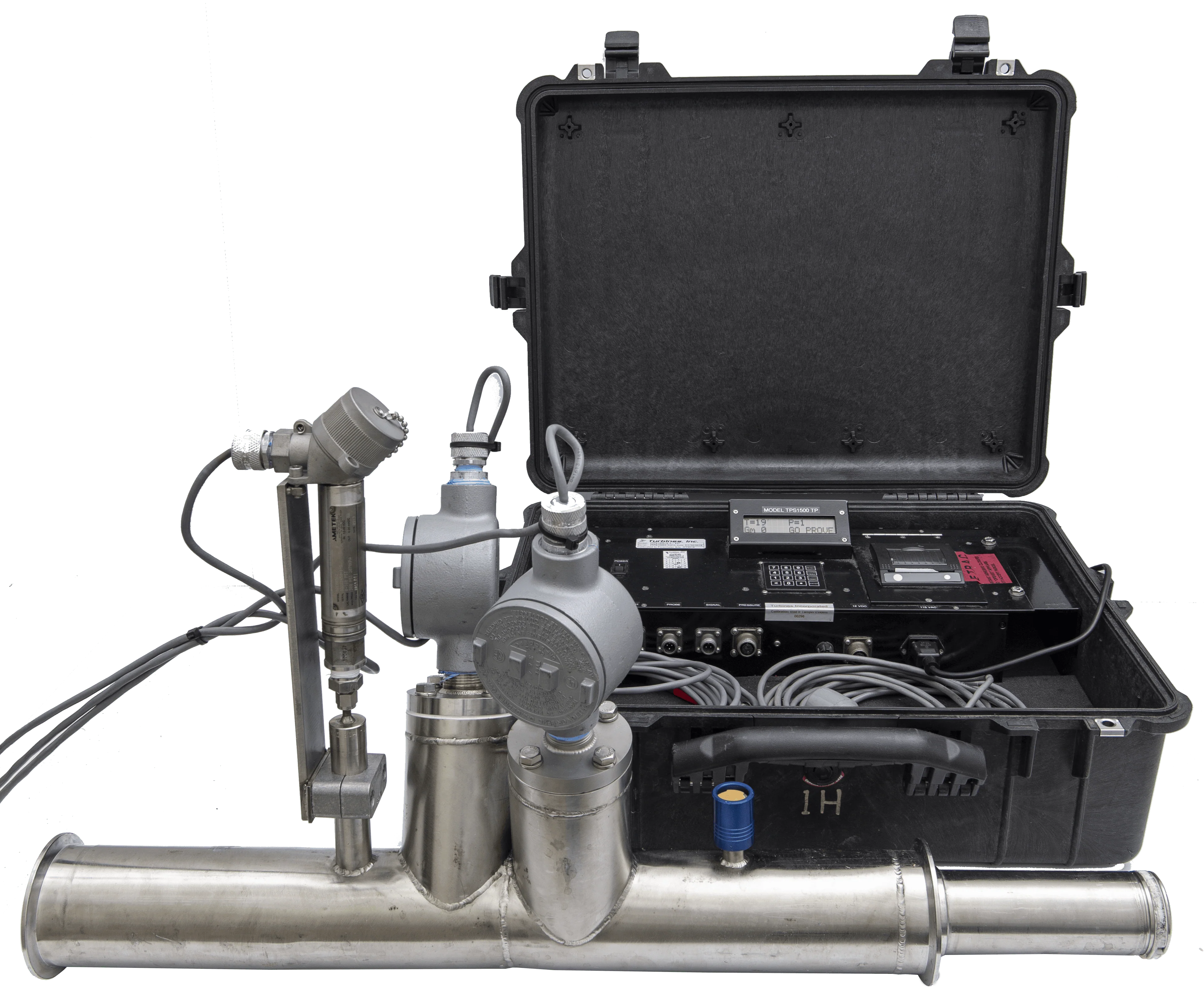

The TPS1500 Cryogenic Prover is a secondary calibration standard used to verify existing calibration data and calculate the amount of measurement error in an existing system. The TPS1500 Cryogenic Prover is a self-contained unit complete with cables and a portable carry case that can be easily transported to your customers’ facilities. To maintain an audit trail that is traceable to NIST Handbook 44, the SP1200 prints out calibration tickets in various engineering units
