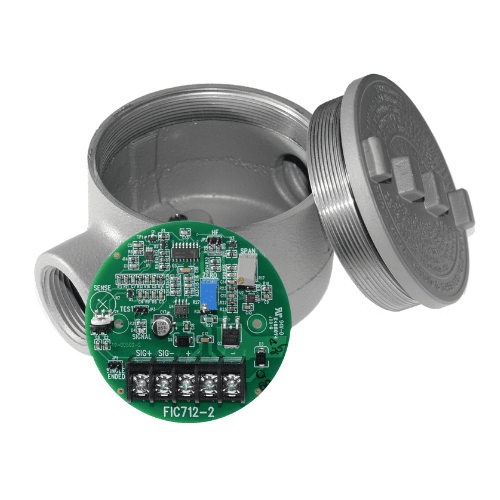

FIC712-2 4-20mA Transmitter
The FIC712-2 Loop Powered 2 Wire 4-20mA Transmitter is designed to linearly convert a frequency input to an equivalent 4-20mA current output. When it incorporates with a turbine flowmeter a current representation proportional to flow is obtainable. Data transmission in a current format exhibits excellent noise immunity and the capability of long distance transmission.
- Specifications
Temperature Range Operating -40° C to +85° C
Storage -65° C to +125° CInput Voltage Minimum = 7 VDC + (20mA X RL)
Maximum = 28 VDC + (4mA X RL)
Protected against polarity reversalSignal Input Frequency 0-10 KHz
Amplitude 50 mV – 35 V sine or square wave
Sensitivity field adjustable
Impedance 50K ohms
Analog Output 4mA @ 0 Hz, 20mA @ desired full-scale frequency
Full scale range -- 100 Hz-10 KHz selectable
Response time -- 95% of change in 1 second
Linearity -- .3% F/S
Tempco -- < 2% of reading over entire temperature range
Features Built in test
Individual LED indicators for power and signal
Mounts directly on flowmeterEnclosure FM Approved, CSA Certified
Class I Groups B, C, D
Class II Groups E, F, G
Weight 1.7 lbs. - Description
The FIC712-2 Loop Powered 2 Wire 4-20mA Transmitter is designed to linearly convert a frequency input to an equivalent 4-20mA current output. When it incorporates with a turbine flowmeter a current representation proportional to flow is obtainable. Data transmission in a current format exhibits excellent noise immunity and the capability of long distance transmission.
