PA714 Pulse Amplifier

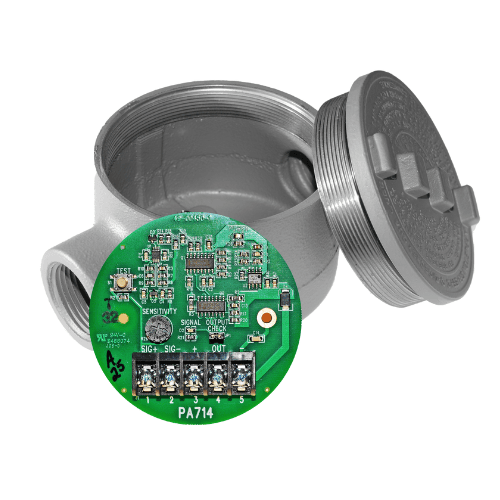

The PA714 Pulse Amplifier is a meter-mounted device that amplifies and conditions low amplitude signals such as those developed by a magnetic pickup coil. The amplitude of the squarewave output equals the input supply voltage of the PA714. Signal amplification and conditioning permits trouble free interfacing between low amplitude signal sources and electronic devices requiring pulse inputs.
- Specifications
Operating Temperature Range Operating -40° C to +85° C
Storage -65° C to +125° CInput Voltage 6-28 VDC; 5 mA @ 24 VDC
Protected against polarity reversal
Signal Input Frequency 0-10 KHz
Amplitude 20 mVp-p minimum sine or square wave
Sensitivity field adjustable
Impedance 10K ohms @ 10KHzAnalog Output 6-28 VDC squarewave proportional to input voltage
Minimum load @ 250 ohms
Short circuit protection
Features Individual LED indicators for power and output signal
Built in test oscillator that injects 4 Hz test signal when test P/B
depressed
Mounts directly on flowmeter
Enclosure FM Approved, CSA Certified
Class I Groups B, C, D
Class II Groups E, F, G
Weight 1.7 lbs
- Description
The PA714 Pulse Amplifier is a meter-mounted device that amplifies and conditions low amplitude signals such as those developed by a magnetic pickup coil. The amplitude of the squarewave output equals the input supply voltage of the PA714. Signal amplification and conditioning permits trouble free interfacing between low amplitude signal sources and electronic devices requiring pulse inputs. The sensitivity adjustment permits the PA714 to discriminate between an
input signal and noise by increasing (CCW) or decreasing (CW) the input signal amplitude necessary to be processed as a valid signal. This, in conjunction with direct mounting, allows the PA714 to operate effectively in noisy environments. - Documentation
