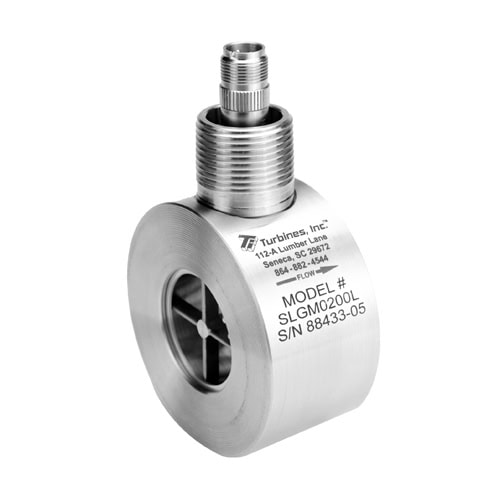

SLGM Series Gas Flow Meter
Accuracy of +/- 1.0% of rate
Temperature Application -450° F to +450° F (850° F with special coil)
Repeatability of 0.1%
- Line sizes 1″ or 2″
- Flow rates from 0.5 to 250 ACFM
- Pressure up to 3,700psi
*Need a digital display or electronics? View Options in the Accessories tab below*
- Specifications
Line sizes 1" and 2"
(Consult factory for additional sizes)Accuracy +/- 1.0% over standard flow range Repeatability +/- 0.1% over standard flow range Operating Temperature -450°F to +450°F (850°F with special coil) Connection Wafer style Flow Rates From 0.5 to 250 ACFM Materials Meter Body: 316 stainless steel
Meter Rotor: 17–4PH Stainless steel
Bearings: 440C Stainless steel ball bearings with self-lubricating
retainerCertifications CRN Certified, NIST Traceable Calibration - Accessories
- Description
The SLGM Series flow meter is engineered to handle measurement in challenging environments. Designed specifically for gas applications such as CO2, natural gas, and air, this meter is meant to be installed between two flanges. The SLGM meter delivers +/‐ 1% standard linearity in sizes of 1” or 2” covering flows from 0.5 to 250 ACFM. Turbines, Inc. documents the K-factor for each meter using a NIST-traceable factory or independent laboratory calibration.
- Documentation
| Item # | Process Connection Size | Flow Range | Product Page |
|---|---|---|---|
| SLGM0100L | 1" | 0.5 to 20 ACFM | View Product |
| SLGM0100 | 1" | 3 to 30 ACFM | View Product |
| SLGM0100H | 1" | 4 to 60 ACFM | View Product |
| SLGM0100LX2 | 2" | 0.5 to 20 ACFM | View Product |
| SLGM0100X2 | 2" | 3 to 30 ACFM | View Product |
| SLGM0100HX2 | 2" | 4 to 60 ACFM | View Product |
| SLGM0200L | 2" | 2 to 90 ACFM | View Product |
| SLGM0200 | 2" | 15 to 250 ACFM | View Product |
