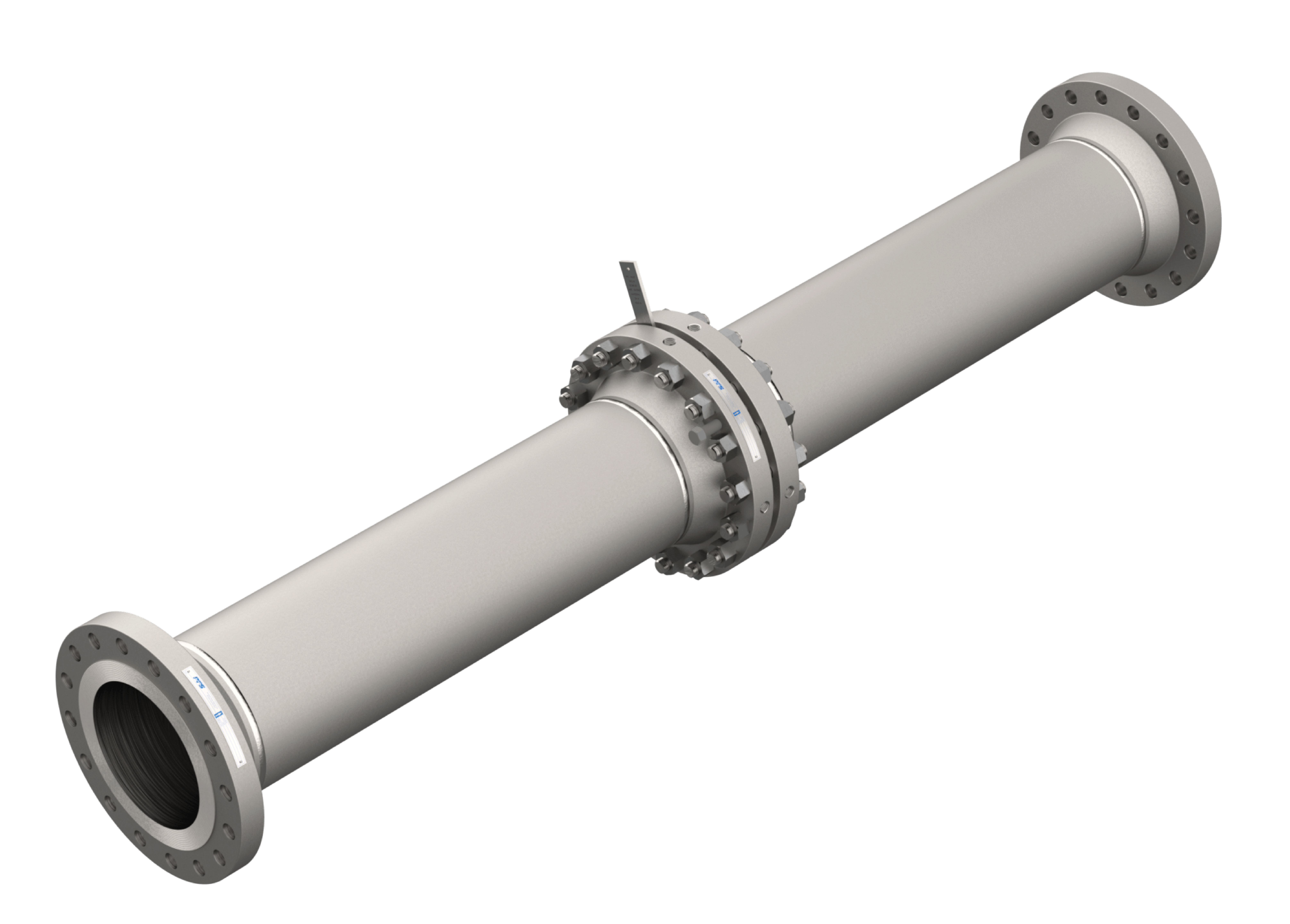

Orifice Meter Runs
Liquids and Gases, pipe spools included
- Honing available
- Meets ISO, AGA, ASME, API Requirements
- Supplied with any combination of NDE required
- Specifications
Line Size ½” to 48” Standard (special sizes available) Head loss % of Differential 30% to 70% Beta Dependent Basic Accuracy (% of Total) +/- 0.25 (Calibrated) +/- 0.50% to 0.75%, Beta Dependent (Uncalibrated) Recommended pipe Reynolds number Must be greater than 10,000, Added uncertainty under 10,000 Required Straight Piping Per ISO, AGA, ASME, API standard as applicable, 5 to 70 Pipe Diameters Beta Range 0.20 to 0.75 Useful Service Life Long, Check Periodically if Erosive Fluid is a Concern Service Functional Limits Clean liquids & gases Vent or Drain Holes Vent or drain holes are available to let trapped gas or condensate pass - Description
Orifice Meter Runs are complete flow measurement devices, ready for installation, that include a manufacturer installed Orifice Union and Orifice Plate and the required up & down stream pipe sections. Stated uncertainties are contingent upon all code prescribed tolerances and finishes being met. The selection of a complete meter run ensures full conformance to all code specified geometric tolerances and finishes. In cases of smaller line sizes, the pipe sections may require honing in order to be compliant with the applicable code required finish. A fully fabricated run, complete with any variation of NDE required, is the only way to ensure this compliance.
- Documentation
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment, typically within 24 hours, thus minimizing expensive down time.
