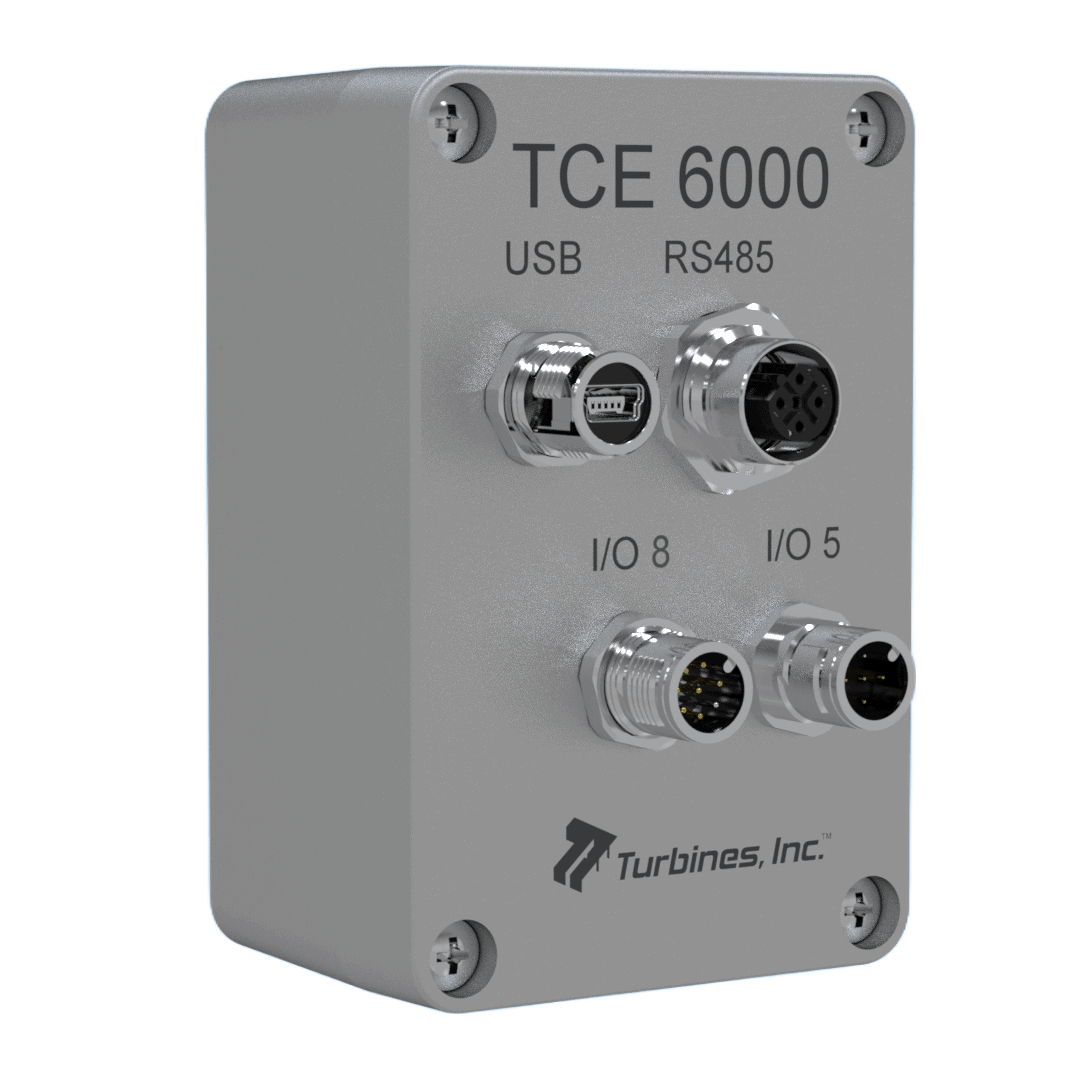

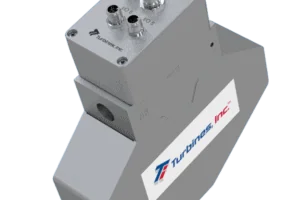

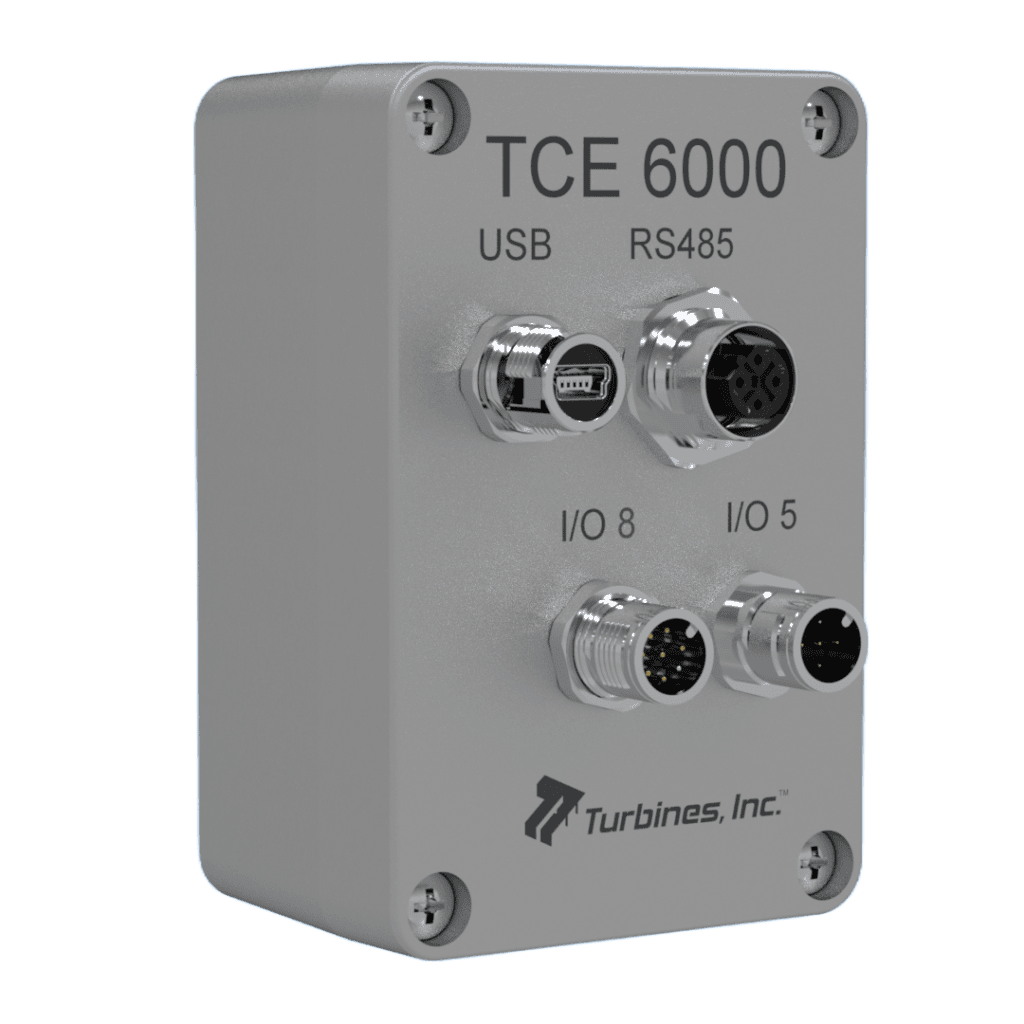

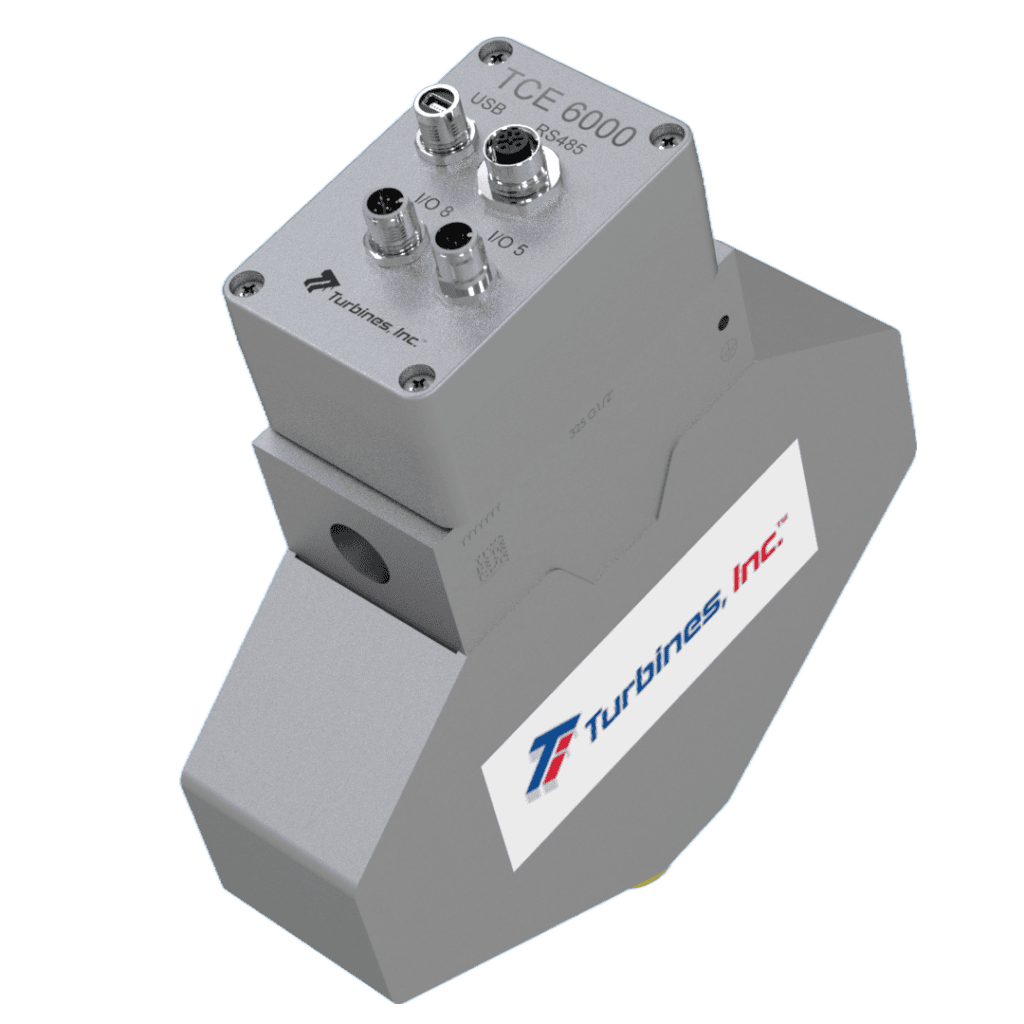

TCE 6000 Coriolis Transmitter
The TCE 6000 is a Multi-variable Coriolis transmitter that can output flow rate, total, density or temperature. Units ship factory-configured and ready for ESTA applications. TCE 6000 transmitters communicate via RS485 (Modbus RTU) for easy connection.
- Specifications
Supply Voltage 24 VDC Power Consumption Max. 4 W Interfaces RS485 (Modbus RTU), USB (option) Housing Material
Aluminum Protection Class
IP65 Ambient Temperature
-40 to 158°F (-40 to 70°C) Connectivity
M12 connectors Current Outputs (2x)
4-20 mA active Output Value (programmable)
flow, total mass, total volume, density, temperature Frequency Range
0.5 - 10,000 Hz For ESTA (OPTV receiver): 0.5 - 5,000 Hz Output Signal
Active: push-pull outfit for flow rate
Optional: isolated optical pulse output
Status Output
Push pull programmable (option)
in TOTAL mode: 0.5 - 100 Hz
Control Input (programmable) Standard: 1 input / option: 2 inputs
Optional: insulated optical control input - Description
The TCE 6000 is a Multi-variable Coriolis transmitter that can output flow rate, total, density or temperature. Units ship factory configured and ready for ESTA applications. TCE 6000 transmitters communicate via RS485 (Modbus RTU) for easy connection.
- Documentation
Additional Images, Charts, or Drawings
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.
Certifications
ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN
