TCM Series Coriolis Mass Flow Meters

Coriolis products feature a distinctive design and exclusive manufacturing techniques that yield precisely balanced tubes, ensuring high accuracy, consistency, and resistance to process noise. Coriolis meters are designed for exceptional user-friendliness and quick setup immediately upon unboxing. Our dedicated service team collaborates with you to deliver tailored solutions that address your specific requirements, including custom connections, pre-configured transmitter settings, and reporting options. The Coriolis range presents a wide array of products with pricing structures that align with performance levels.

Get Application Guidance

Specifications

Accuracy	+/- 0.1% of flow rate (liquids) +/- 0.5% of flow rate (gases)
Zero Stability	+/- 0.1% of full scale
Repeatability	+/- 0.05 % of flow rate (liquids) +/- 0.25% of flow rate (gases)
Maximum Flow Rate	TCM 0325: 325 kg/hr \| 12 lbs/min \| 325 l/hr \| 1.43 gpm \| 49 bbl/d (US) TCM 0650: 650 kg/hr \| 24 lbs/min \| 650 l/hr \| 2.86 gpm \| 98 bbl/d (US) TCM 1500: 1500 kg/hr \| 57 lbs/min \| 1500 l/hr \| 6.82 gpm \| 234 bbl/d (US) TCM 3100: 3100 kg/hr \| 114 lbs/min \| 3100 l/hr \| 13.65 gpm \| 468 bbl/d (US) TCM 5500: 5500 kg/hr \| 202 lbs/min \| 5500 l/hr \| 24.22 gpm \| 830 bbl/d (US) TCM 7900: 7900 kg/hr \| 290 lbs/min \| 7900 l/hr \| 34.78 gpm \| 1193 bbl/d (US) TCM 028K: 28,000 kg/hr \| 1029 lbs/min \| 28,000 l/hr \| 123.3 gpm \| 4227 bbl/d (US) TCM 065K: 65,000 kg/hr \| 2388 lbs/min \| 65,000 l/hr \| 286.2 gpm \| 9812 bbl/d (US) TCM 230K: 230,000 kg/hr \| 8450 lbs/min \| 230,000 l/hr \| 1013 gpm \| 34,720 bbl/d (US)
Standard Operating Pressure	TCM 0325: 2900 psi, 200 bar TCM 0650: 2900 psi, 200 bar TCM 1500: 2900 psi, 200 bar TCM 3100: 2900 psi, 200 bar TCM 5500: 5000 psi, 345 bar TCM 7900: 1450 psi, 100 bar TCM 028K: 1450 psi, 100 bar TCM 065K: 1450 psi, 100 bar TCM 230K: 1450 psi, 100 bar
Temperature	Temperature Repeatability: ±0.36°F (±0.2°C) Temperature Accuracy: ±1.8°F ±0.5% of reading (±1°C ±0.5% of reading) Process Temperature: Standard: -40°F to +212°F (-40°C to +100°C), Optional: -76°F to +392°F (-60°C to +200°C)
Materials of Construction	Tubes: 1.4404 / AISI 316L Stainless Steel Case: 1.4404 / AISI 316L Stainless Steel For more detailed material information, see Technical Datasheet or individual product Spec Sheets.
Certifications	cCSAus: Class I, Division 1: Group A, B, C, D or C, D, T2…T4 ATEX: Zone 1: Group IIC or IIB, T2…T4 \| Zone 2: II 3G Ex nA IIC T2…T4 Gc IECEx: Zone 1: Group IIC or IIB, T2…T4 EAC (TR-CU): Group IIC or IIB, T2…T4 Triple Approval: cCSAus + ATEX + IECEx: Zone 1: Group IIC or IIB, T2…T4 and Class I, Division 1: Group A, B, C, D or C, D, T2…T4 ¹ Stated flow accuracy combines the effects of repeatability, linearity and hysteresis.

Description
Coriolis products feature a distinctive design and exclusive manufacturing techniques that yield precisely balanced tubes, ensuring high accuracy, consistency, and resistance to process noise. Coriolis meters are designed for exceptional user-friendliness and quick setup immediately upon unboxing.
Documentation

TCM065K Data Sheet

TCM230K Data Sheet

TCM0325 Data Sheet

TCM0650 Data Sheet

TCM1550 Data Sheet

TCM3100 Data Sheet

TCM7900 Data Sheet

TCM028K Data Sheet

Available Configurations

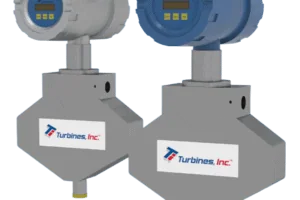

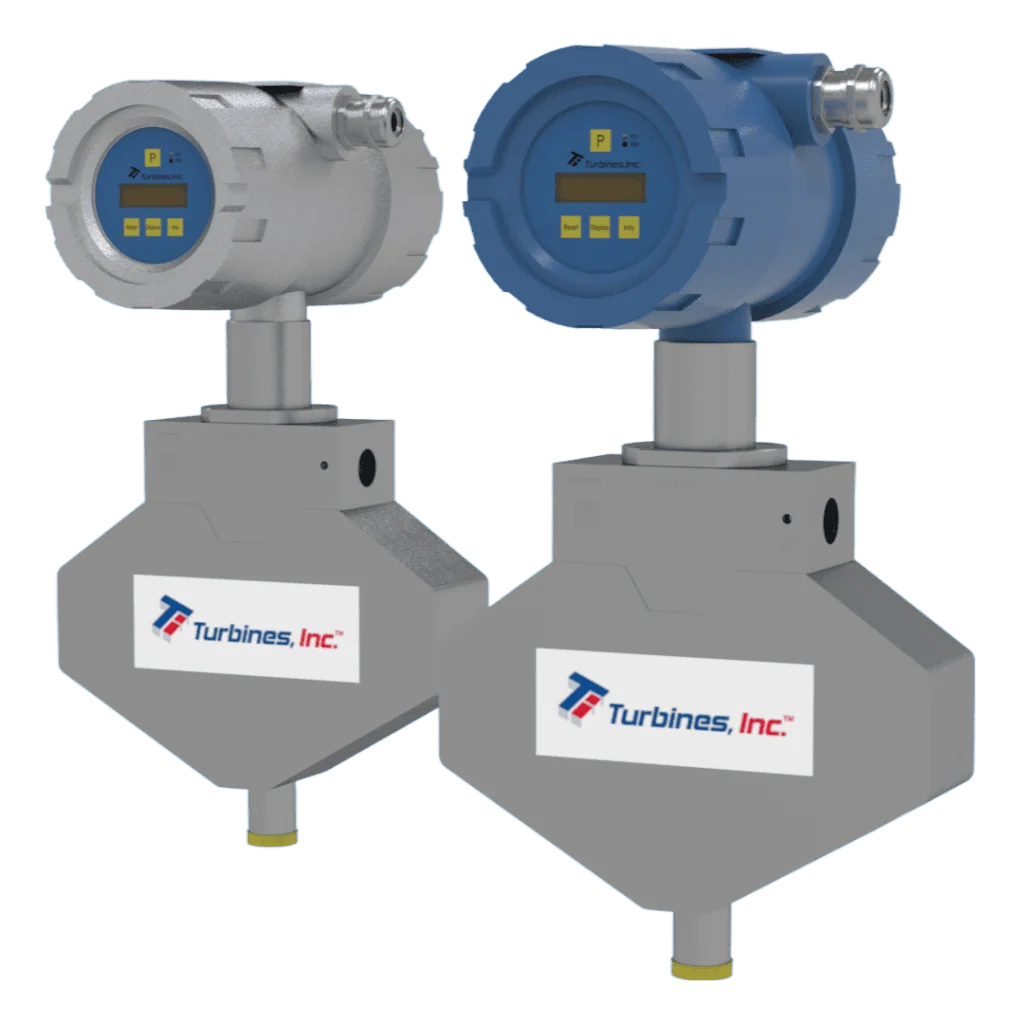

TCM 0325

Coriolis Mass Flow Meter

MASS FLOW RATE: 325 kg/h | 12 lb/min

VOLUMETRIC FLOW RATE: 325 l/h | 1.43 gpm | 49 bbl/d

NOMINAL METER SIZE: DN4 mm | 1/8″

TCM 0650

Coriolis Mass Flow Meter

MASS FLOW RATE: 650 kg/h | 24 lb/min

VOLUMETRIC FLOW RATE: 650 l/h | 2.86 gpm | 98 bbl/d

NOMINAL METER SIZE: DN4 mm | 1/8″

TCM 1550

Coriolis Mass Flow Meter

MASS FLOW RATE: 1550 kg/h | 57 lb/min

VOLUMETRIC FLOW RATE: 1550 l/h | 6.82 gpm | 234 bbl/d

NOMINAL METER SIZE: DN6 mm | 1/4″

TCM 3100

Coriolis Mass Flow Meter

MASS FLOW RATE: 3100 kg/h | 114 lb/min

VOLUMETRIC FLOW RATE: 3100 l/h | 13.65 gpm | 468 bbl/d

NOMINAL METER SIZE: DN6 mm | 1/4″

TCM 5500

Coriolis Mass Flow Meter

MASS FLOW RATE: 5500 kg/h | 202 lb/min

VOLUMETRIC FLOW RATE: 5500 l/h | 24.22 gpm | 830 bbl/d

NOMINAL METER SIZE: DN15 mm | 1/2″

TCM 7900

Coriolis Mass Flow Meter

MASS FLOW RATE: 7900 kg/h | 290 lb/min

VOLUMETRIC FLOW RATE: 7900 l/h | 34.78 gpm | 1193 bbl/d

NOMINAL METER SIZE: DN15 mm to | 1/2″

TCM 028K

Coriolis Mass Flow Meter

MASS FLOW RATE: 28,000 kg/h | 1029 lb/min

VOLUMETRIC FLOW RATE: 28,000 l/h | 123.3 gpm | 4227 bbl/d

NOMINAL METER SIZE: DN25 mm | 1″

TCM 065K

Coriolis Mass Flow Meter

MASS FLOW RATE: 65,000 kg/h | 2388 lb/min

VOLUMETRIC FLOW RATE: 65,000 l/h | 286.2 gpm | 9812 bbl/d

NOMINAL METER SIZE: DN40 mm | 1-1/2″

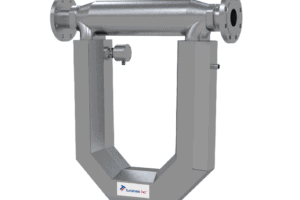

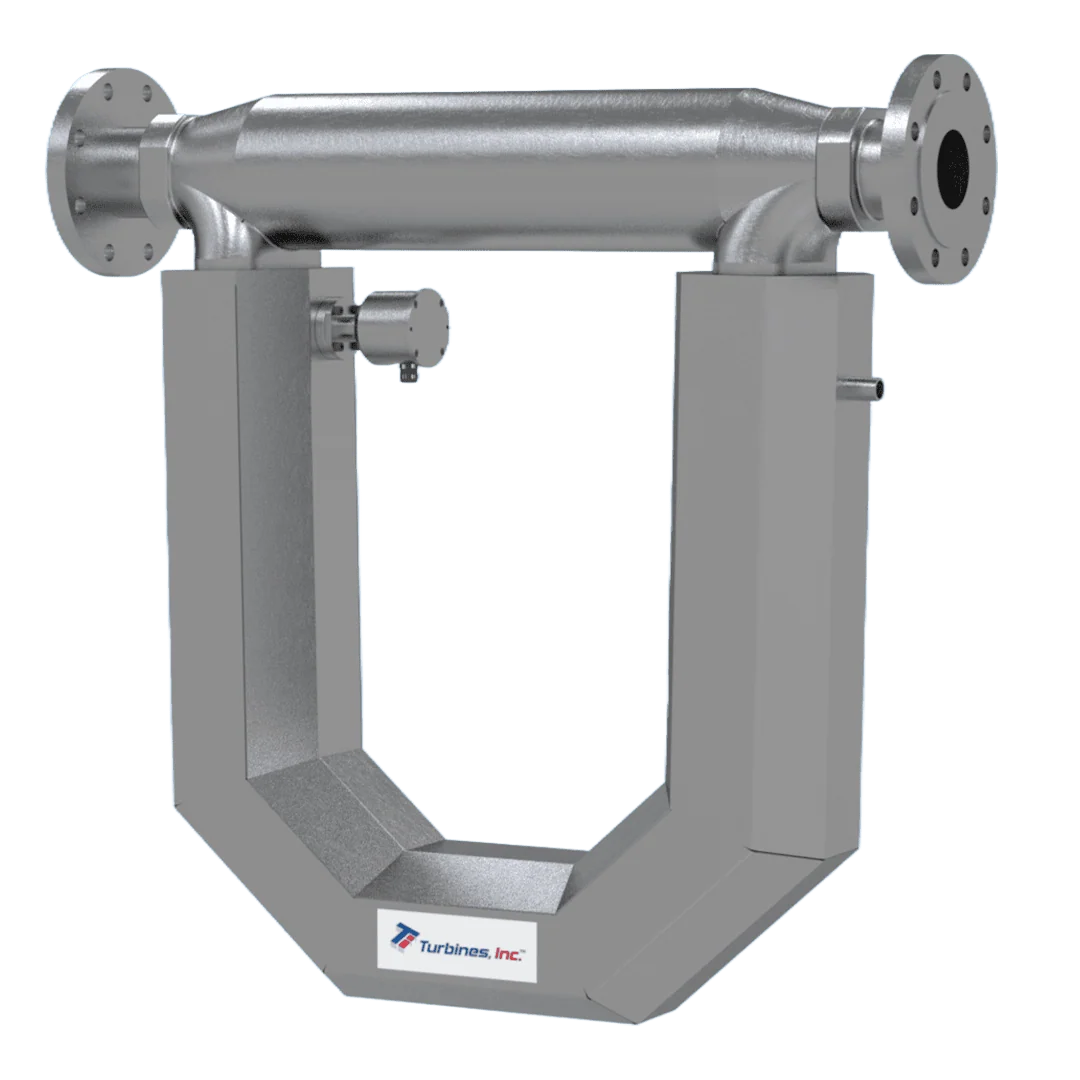

TCM 0230K

Coriolis Mass Flow Meter

MASS FLOW RATE: 230,000 kg/h | 8450 lb/min

VOLUMETRIC FLOW RATE: 230,000 l/h | 1013 gpm | 34,720 bbl/d

NOMINAL METER SIZE: DN80 mm | 3″

Additional Images, Charts, or Drawings

Support and Service

Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.

If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.

Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.

Certifications

ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN
