Wedge-X Flow Meter (WX)
Integral Manifold, Replaceable Wedge
- Line size: 2 inches
- Head loss % of Differential: 25 to 60 percent
- Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
- Specifications
Line Size 2 inches Head loss % of Differential 25 to 60 percent Basic Accuracy (% of Total) (Wet Calibrated) +/- 0.50, (Uncalibrated) +/- 3.00
Recommended pipe Reynolds number Must be greater than 5000 for basic accuracy Required Straight Piping Consult PFS datasheet Beta Range 0.20 through 0.80 Useful Service Life Medium to Long depending on service Service Functional Limits Clear Liquids, Gas and Steam Applications Liquids with suspended solids, Chemical and Petrochemical industry, Pulp and paper industry, Mining, Oil, Gas, Refineries, High Viscosity Corrosive and Abrasive Liquids Common Materials Carbon Steel, Stainless Steel - Description

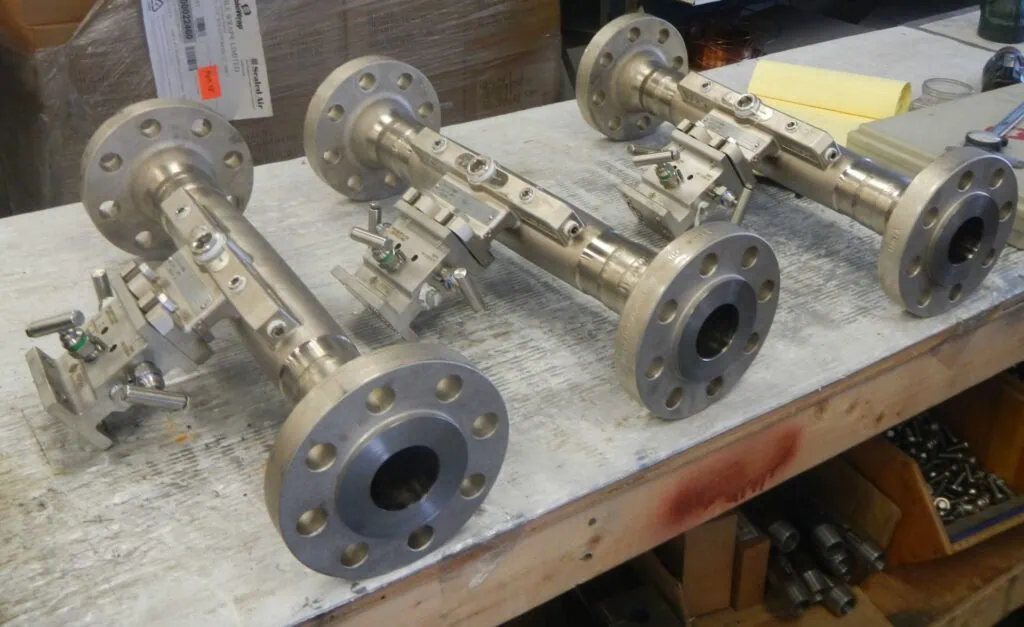

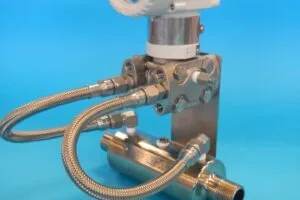

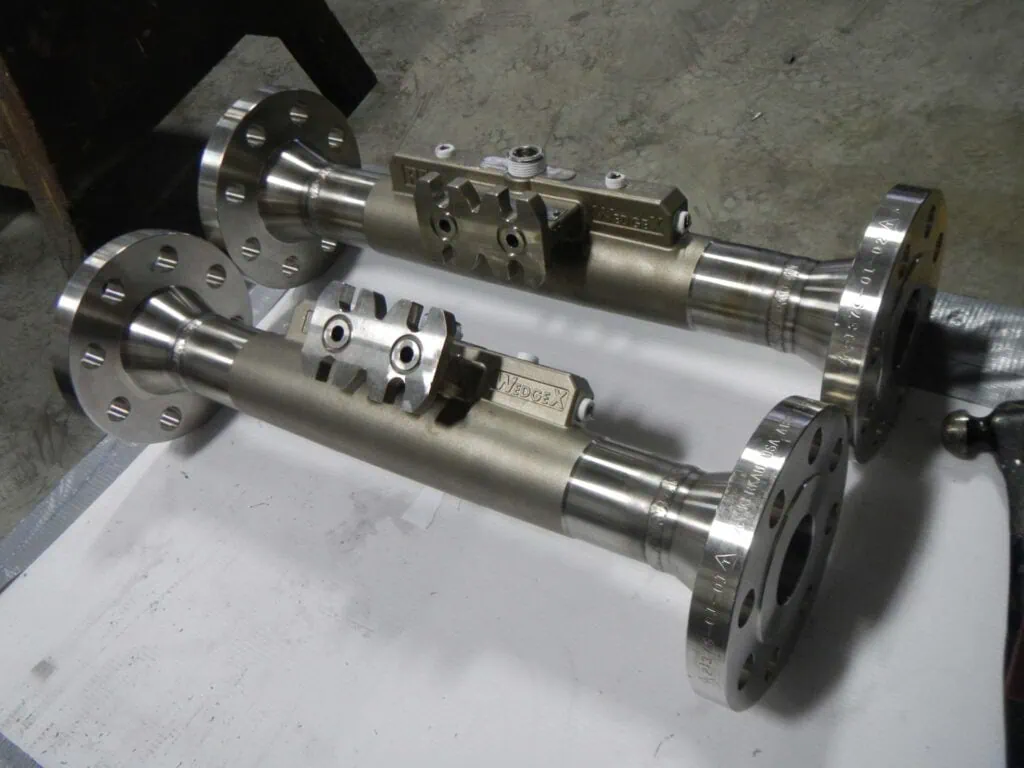

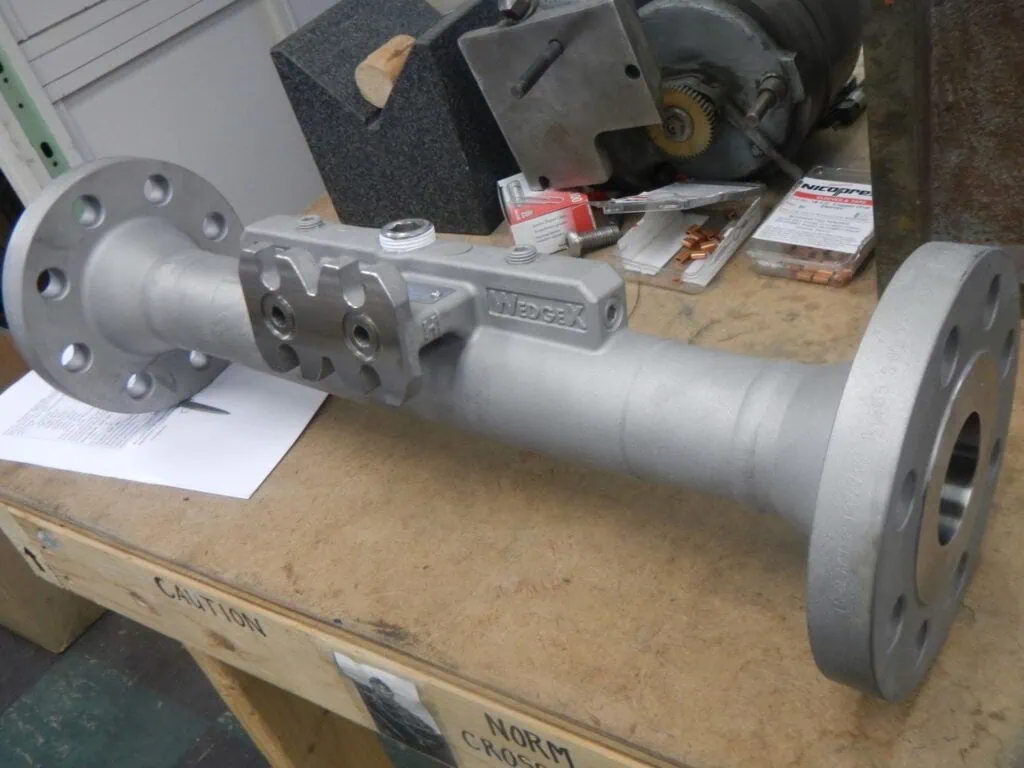

The Wedge-X flow meter design is derived from the standard wedge flow meter, but allows for a direct coupled differential pressure transmitter, and a replaceable wedge which results in a compact and cost-effective unit that virtually eliminates both gauge line induced and plugged tap related measurement errors.
The replaceable wedge feature is an extremely fast and cost-effective way of addressing situations like erosion of the wedge. A wedge can also be replaced with a different size to increase or decrease dP as needed.
The wedge flow meter is intended for high-density, slurry type, or contaminated line fluid applications, including difficult-to-meter, air entrained liquids. WedgeX meters can be customized to measure fluids over a large range of pressures and Reynolds numbers; making them ideal for many applications, including shale gas extraction.
- Documentation
Additional Images, Charts, or Drawings
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment, typically within 24 hours, thus minimizing expensive down time.
Certifications
ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN
