Turbine flow meters are widely valued for their high accuracy, repeatability, and fast response in liquid and gas flow measurement applications. While many engineers focus on sizing, materials, and bearing selection when specifying a turbine meter, one of the most influential design variables is often overlooked: rotor blade angle.
Blade angle plays a critical role in determining how a turbine flow meter responds to flow, particularly at the low end of its operating range. Understanding how blade geometry affects sensitivity can help engineers better evaluate meter performance and select the right technology for demanding applications.
What Is Blade Angle in a Turbine Flow Meter?

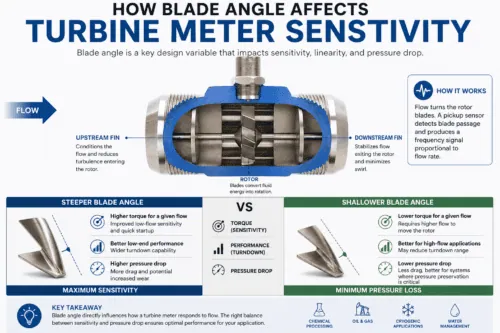

Blade angle refers to the pitch or orientation of the rotor blades relative to the direction of fluid flow. As process fluid moves through the meter body, it imparts force onto the rotor blades, causing the rotor to spin. The angle of the blades determines how effectively the fluid’s kinetic energy is converted into rotational torque.
A steeper blade angle presents more surface area to the flow, allowing the fluid to exert greater force on the rotor. A shallower blade angle reduces the force transferred to the rotor, resulting in lower torque generation but less flow resistance.
Because of this, blade angle directly influences how readily the rotor responds to flow changes.
How Turbine Flow Meters Generate Measurement Signals
Turbine flow meters operate by measuring rotor speed. As the rotor spins, a magnetic pickup or electronic sensor detects blade passage and converts it into a pulse output. The pulse frequency is proportional to the rotor’s rotational speed, which correlates directly with fluid velocity and volumetric flow rate.
For the system to measure accurately, the rotor must respond predictably and consistently to changes in flow. Rotor responsiveness is where blade angle becomes especially important.
The Relationship Between Blade Angle and Meter Sensitivity
In turbine flow measurement, sensitivity refers to how readily the rotor begins rotating and how accurately it responds to small changes in flow rate—particularly at low flow conditions.
Blade angle affects sensitivity by controlling how much torque the fluid generates on the rotor:
- Steeper blade angles generate more torque for a given flow rate
- Shallower blade angles generate less torque and require higher flow to initiate rotor movement
More torque generally improves low-flow responsiveness because the rotor can overcome bearing friction and inertia more easily. This allows the meter to begin producing usable output at lower flow rates.
However, increasing blade angle also increases drag and obstruction to flow, which introduces tradeoffs.
Effects of Steeper Blade Angles
Rotor designs with steeper blade angles typically offer:
- Improved low-flow startup characteristics
- Greater rotor responsiveness at low Reynolds numbers
- Enhanced sensitivity in low-flow or intermittent flow applications
These benefits can make steeper blade designs attractive for applications requiring wide turndown ratios or precise low-end measurement.
The tradeoff is that steeper blade angles also:
- Increase pressure drop across the meter
- Generate greater hydraulic loading on bearings
- May accelerate wear in demanding service conditions
For this reason, maximum sensitivity is not always the ideal design objective.
Effects of Shallower Blade Angles
Shallower blade angles reduce the amount of force imparted to the rotor, which lowers drag and pressure loss.
Benefits of shallower blade geometries include:
- Lower pressure drop across the meter
- Reduced obstruction to process flow
- Better suitability for high-flow applications where pressure preservation is critical
However, because less torque is generated, these designs may:
- Require higher flow rates to initiate rotor movement
- Reduce low-end sensitivity
- Narrow the meter’s effective turndown range
This makes shallow-angle designs better suited for applications where low pressure drop is more important than extreme low-flow sensitivity.
How Blade Angle Impacts Meter Linearity and Rangeability
Blade angle also influences a turbine meter’s linearity and usable operating range.
Rotor geometry affects how consistently the rotor speed tracks actual fluid velocity across the flow range. Poor blade angle optimization can lead to:
- Nonlinear K-factor performance
- Reduced calibration stability
- Limited turndown ratio
A properly optimized blade angle helps maintain a flatter calibration curve, improving linearity across the meter’s operating range and enhancing overall rangeability.
Blade Angle Considerations for Different Applications
Low Flow / High Accuracy Applications
Applications requiring precise low-flow measurement often benefit from higher sensitivity rotor designs with steeper blade angles. These include:
- Chemical dosing systems
- Additive injection skids
- Pilot plant batching systems
High Flow / Low Pressure Drop Applications
Where maintaining pressure is critical, such as large process loops or pump-limited systems, shallower blade angles may be preferred.
Viscous Fluid Applications
Fluid viscosity changes how force transfers to the rotor and can significantly impact performance. Blade angle must be considered alongside viscosity to maintain proper sensitivity and linearity.
Blade Angle Is Only One Part of Rotor Optimization
While blade angle is important, turbine meter performance depends on the complete rotor design. Other critical variables include:
- Rotor diameter
- Number of blades
- Blade profile and contour
- Bearing design
- Rotor and housing materials
The best-performing turbine meters result from optimization of all these variables—not blade angle alone.
Why Custom Rotor Design Matters in Engineered Flow Measurement
Not all turbine flow meters are designed the same. Rotor geometry, including blade angle, is often tailored to the intended application.
Manufacturers with deep turbine flow expertise can optimize blade angle and rotor design for specific operating conditions such as:
- High-pressure liquids
- Cryogenic fluids
- Low-viscosity hydrocarbons
- Wide turndown batching systems
This is one reason engineered turbine flow meters frequently outperform commodity designs in demanding industrial service.
Final Thoughts
Blade angle has a direct and significant impact on turbine meter sensitivity, affecting low-flow performance, pressure drop, linearity, and overall meter rangeability. While steeper blade angles can improve low-end responsiveness, they also introduce greater drag and pressure loss. Shallower angles reduce resistance but may sacrifice sensitivity.
Because blade angle is only one part of the broader rotor design equation, proper turbine meter selection requires evaluating the full application—not just the published flow range.
When measurement performance matters, working with an experienced turbine flow meter manufacturer can help ensure rotor geometry is optimized for your process conditions.
