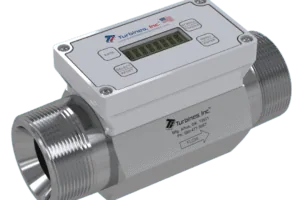

ITM Series - Digital Flow Meter
Accuracy of +/- 1.0% of rate
Temperature Application -22°F to +150°F
Repeatability of +/- 0.1%
- Line sizes 7/8″ , 1″ or 2″
- Flow rates from 3 to 30gpm, 5 to 50gpm & 15 to 180gpm
- Pressures up to 4,000psi
- Specifications
Line sizes 7/8" and 1”
(Consult factory for additional sizes)Accuracy +/- 1.0% over standard flow range Repeatability +/- 0.1% over standard flow range
Operating Temperature -22°F to +150°F Connection 1” FNPT Flow Rates 3 to 30gpm
5 to 50gpmMaterials Meter Body: 316 stainless steel
Meter Rotor: 7/8” 416 Stainless Steel
1” CD4MCu
Sleeve Bearings: Tungsten CarbideCertifications NIST Traceable Calibration, IP67 - Description

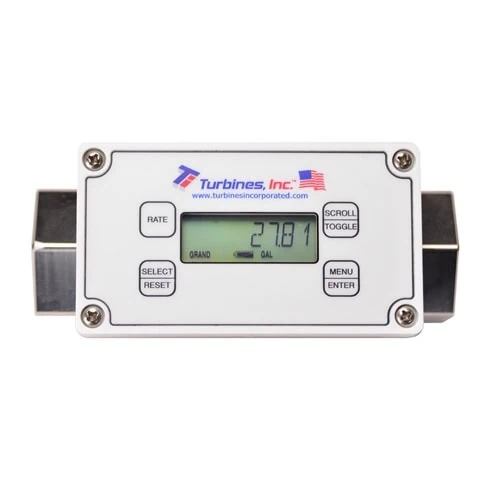

The ITM Series flow meter is a highly versatile product that offers all stainless steel, precision-machined components. The integrated electronics include batch and cumulative totals, with instantaneous flow rates. The ITM Series has an operating temperature range of -22ºF to +150ºF in flow rates from 3 to 180gpm, provides +/- 1.0 % standard linearity, and repeatability of +/- 0.10 %.
- Documentation
| Item # | Process Connection Size | Flow Range | List Price | Product Page |
|---|---|---|---|---|
| ITM0078 | 1" FNPT | 3 to 30 GPM | $875.00 | View Product |
| ITM0100 | 1" FNPT | 5 to 50 GPM | $875.00 | View Product |
Additional Images, Charts, or Drawings
