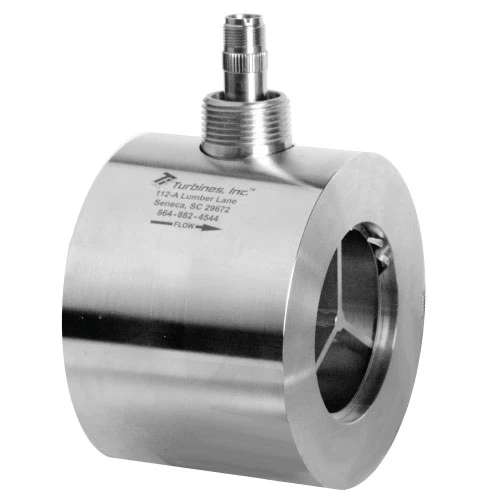

WHA Series – High Accuracy Wafer Flow Meter
Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +850°F
Highly configurable materials of construction
- Line sizes from 1″ to 4″
- Flow rates from 1 to 1,250gpm
- Pressure up to 6,170psi
*Need a digital display or electronics? View Options in the Accessories tab below*
- Specifications
Line sizes 1″ to 4″ Accuracy +/- 0.5% over flow range (for 0.25% consult factory) Repeatability +/- 0.1 % over flow range Operating Temperature -450°F to +450°F (850°F with special coil) Connection Wafer Style Flow Rates From 1 to 1,250gpm Materials Meter Body: 316 stainless steel
Rotor Supports: 316 stainless steel
Meter Rotor: 17-4PH, Nickel 200 (consult factory for other options)
Rotor Shaft: 316 SS
Bearings: Ball Bearings, Teflon, Tungsten Carbide (consult factory for additional bearing material options)Certifications NIST Traceable Calibration, CRN Additional lnformation Full line of economical Retrofit Kits are available
Factory refurbishment available - Accessories
- Description
The WHA Series is engineered specifically for high-accuracy applications. This precision machined flow meter features an operating temperature range of -450°F to +450°F, covering flow rates of 1 to 1,250gpm with a standard linearity of +/- 0.5% and repeatability of +/- 0.1%. Turbines, Inc. documents meter performance by means of a NIST-traceable factory or independent laboratory calibration. With decades of experience, Turbines, Inc. maintains our competitive edge in flow measurement.
- Documentation
| Item # | Process Connection Size | Flow Range | List Price | Product Page |
|---|---|---|---|---|
| WHA0100 | 1" | 4 to 60 GPM | $1,468.05 | View Product |
| WHA0150 | 1 1/2" | 8 to 130 GPM | $1,825.00 | View Product |
| WHA0200 | 2" | 15 to 225 GPM | $1,934.86 | View Product |
| WHA0300 | 3" | 40 to 650 GPM | $2,800.80 | View Product |
| WHA0400 | 4" | 75 to 1,250 GPM | $3,787.17 | View Product |
