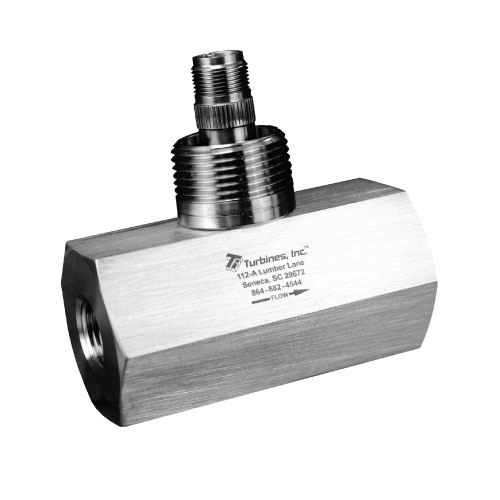

LFENC Series - Encapsulated Low Flow Meter
+/- 0.25% Repeatability of rate
Temperature Application -450°F to +450°F
Specifically Engineered for Low Flow Applications
- Line size 1/2″ or 1″ FNPT
- Flow rates from .007 to 3.00 GPM
- Pressure up to 20,000 psi
*Need a digital display or electronics? View Options in the Accessories tab below*
- Specifications
Line sizes 1/2" or 1" FNPT Repeatability +/- 0.25 % over flow range Operating Temperature -450° F to +450°F Connection FNPT Flow Rates From 0.007 to 3gpm Materials Meter Body: 316 stainless steel
Rotor Supports: 316 stainless steel
Rotor: 17-4PH, Nickel 200, Duplex Stainless Steel (consult factory for other options)
Rotor Shaft: 316 SS
Bearings: 440C Stainless Steel raceway and balls, self-lubricating retainer, Teflon, Graphitar. (consult factory for additional bearing material options)Certifications NIST Traceable Calibration Additional Information Full line of economical Retrofit Kits are available
Factory refurbishment available - Accessories
- Description
The LFENC Series flow meter is manufactured specifically for low-flow applications ranging from .007 to 3gpm. The Encapsulated Low Flow Meter can handle working pressures up to 8,000psi (consult factory for higher pressure ratings) and deliver +/‐ .25% repeatability over the specified flow range. Turbines, Inc. documents the K-factor for each meter by means of a 20-point NIST-traceable factory or independent laboratory calibration.
- Documentation
Need help finding a flow meter?
We can help guide you to the correct solution for your business needs, whether you are looking for product information, data sheets, repair information we are available to help!
