High Accuracy Flow Meters
Our High Accuracy turbine flow meters are built with extremely tight tolerances only achievable with our precision manufacturing processes, comprehensive quality control, and in-house calibration capabilities.
Specifically engineered to meet the strict standards required for custody transfer, the High Accuracy Meter delivers +/- 0.5% or better accuracy and +/- 0.1% repeatability for low viscosity applications. For every High Accuracy turbine flow meter manufactured by Turbines, Inc., a unique K-factor is documented by means of NIST-traceable factory or independent laboratory ISO/IEC 17025 certified.
Performance Data:
- Accuracy: +/- 0.5% over standard flow range (for 0.25% consult factory)
- Repeatability: +/- 0.1% over standard flow range
- Linearity: +/- 0.5% over flow range
- Operating Temperature: -450° F to +450° F (for higher temperatures consult factory)
- End Connection: Flanged, Victaulic® (grooved), 37° AN Flare, or NPT (additional end connections available)
- Flow Rate: From 1 to 12,000 GPM
Our vast in-stock inventory and expedient delivery capabilities are due to our investments in cutting-edge manufacturing, and our network of dedicated facilities and partners.

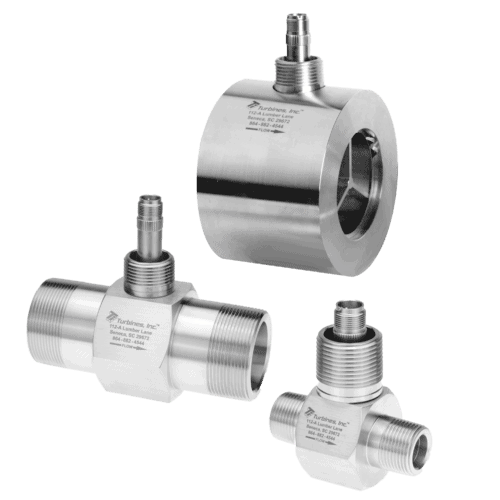

HA Series – High Accuracy Turbine Meter
Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +850°F
Highly configurable materials of construction
- Line sizes from 1/2″ to 12″
- Flow rates from 1 to 12,000 gpm
- Pressure up to 20,000 psi
