TM Series

TM Series - Liquid Inline Flow Meter

Accuracy +/- 1% of rate
Wide Temperature Application -100°F to +250°F (+850°F with special coil)
Repeatability of 0.1%

  • Line sizes from 3/8″ to 10″
  • Flow rates from 0.3 to 5,500gpm
  • Pressures up to 5,000psi

Download The Data Sheet

*Need a digital display or electronics? View Options in the Accessories tab below*

Get Application Guidance Buy Online
  • Specifications
    Line sizes3/8″ to 10″
    Accuracy+/- 1.0% over flow range
    Repeatability+/- 0.1 % over flow range
    Operating Temperature-100°F to +250°F (+850°F with special coil)
    ConnectionFlanged, Victaulic® (grooved), or NPT
    (Consult factory for additional process connection options)
    Flow RatesFrom 0.3-5,500gpm (10-190,000 BPD)
    MaterialsMeter Body: 316 stainless steel
    Rotor Supports: 316 stainless steel
    Meter Rotor: CD4MCu/416 stainless steel
    Rotor Shaft: Tungsten carbide
    Sleeve Bearings: Tungsten carbide
    CertificationsNIST Traceable Calibration, CRN
    Additional lnformationFull line of economical Retrofit Kits are available
    Factory refurbishment available
  • Accessories

    E Series Flow Monitor

    F Series Flow Monitor

    FML250 Flow Monitor

    PT420 Signal Conditioner

  • Description

    The TM Series flow meter is a highly­ versatile product that offers all stainless steel, precision-machined components. Designed specifically for liquid applications, the TM Series can be configured with a variety of process connections, including threaded, flanged and grooved.

    The TM meter series provides +/- 1.0% standard linearity and is repeatable to +/- 0.10% over the designed flow range. Turbines, Inc. documents the K-factor for each meter by means of a NIST-traceable factory or independent laboratory calibration.

  • Documentation
Item #Process Connection SizeFlow RangeProduct Page
TM00381" NPT0.3 to 3 GPMView Product
TM0038-1/21/2" NPT0.3 to 3 GPMView Product
TM00501" NPT0.75 to 7.5 GPMView Product
TM0050-1/21/2" NPT0.75 to 7.5 GPMView Product
TM00751" NPT2 to 15 GPMView Product
TM00781" NPT3 to 30 GPMView Product
TM01001" NPT5 to 50 GPMView Product
TM0100-F1501" 150# Flange5 to 50 GPMView Product
TM01501 1/2" NPT15 to 180 GPMView Product
TM0150-F1501 1/2" Flange15 to 180 GPMView Product
TM0200L2" NPT15 to 180 GPMView Product

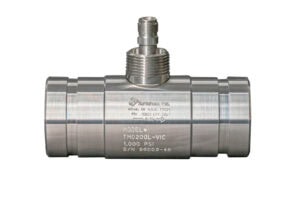

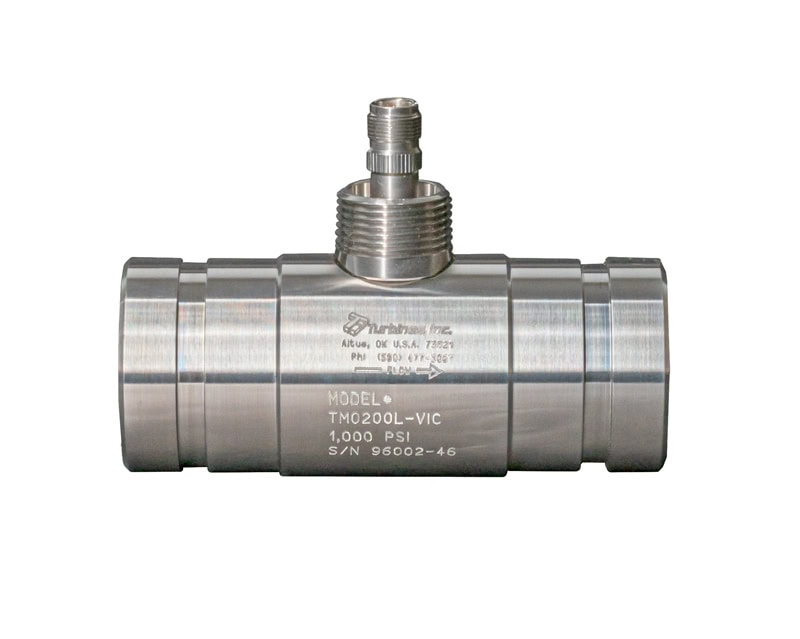

TM0200L-VIC2" Grooved15 to 180 GPMView Product
TM0200L-F1502" 150# Flange15 to 180 GPMView Product
TM02002" FNPT40 to 400 GPMView Product
TM0200-F1502" 150# Flange40 to 400 GPMView Product
TM03003" Grooved60 to 600 GPMView Product
TM0300-NPT3" NPT60 to 600 GPMView Product
TM0300-F1503" 150# Flange60 to 600 GPMView Product
TM04004" Grooved120 to 1,200 GPMView Product
TM0400-NPT4" NPT120 to 1,200 GPMView Product
TM0400-F1504" 150# Flange120 to 1,200 GPMView Product
TM06006" Grooved250 to 2,500 GPMView Product
TM0600-F1506" 150# Flange250 to 2,500 GPMView Product
TM08008" Grooved350 to 3,500 GPMView Product
TM0800-F1508" 150# Flange350 to 3,500 GPMView Product
TM100010" Grooved550 to 5,500 GPMView Product
TM1000-F15010" 150# Flange550 to 5,500 GPMView Product
