WM Series Liquid Wafer-Style Turbine Flow Meter

Accuracy of +/- 1% of rate
Temperature Application -100°F to +850°F
Repeatability of 0.1%

  • Line sizes 3/8″ to 10″
  • Flow rates from 0.3-5500 GPM (10-190,000)BPD
  • Pressure up to 3,700 psig

Description

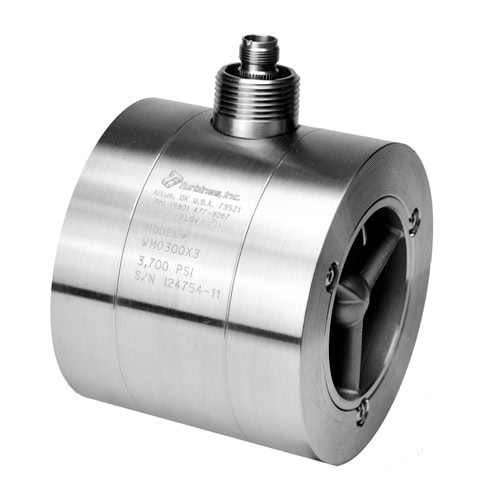

The WM Liquid Wafer Style Turbine flow meter is a highly-versatile product line that offers all stainless steel, precision-machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8″ through 10.0″.

The WM Series turbine meters are designed specifically for installation between two raised‐face flanges and the robust design handles up to 6,000 PSI, depending on the selected meter and flange size.

The WM Series is unique in that rather than snap rings holding the internals, three (3) machine screws hold each rotor support in place, making this a heavy duty meter for most any liquid application.

The WM Series provides +/- 1.0% standard accuracy, and is repeatable to +/- 0.10% over the entire flow range. For every turbine flow meter manufactured by Turbines, Inc., a unique K-factor is established by means of a NIST-traceable factory calibration.

Specifications

Line sizes
3/8 inch-10 inch
Accuracy
+/- 1.0% over flow range
Repeatability
+/- 0.1 % over flow range
Operating Temperature
-100°F to +250°F (+850°F with special coil)
Connection
Wafer style
Flow Rates
0.3-5,500 GPM (10-190,000 BPD)
Materials
Meter Body: 316 stainless steel
Rotor Supports: 316 stainless steel
Meter Rotor: CD4MCu / 416 stainless steel
Rotor Shaft: Tungsten carbide
Bearings: Tungsten carbide
Certifications
ISO 9001, AS 9100, CRN
Additional Information
Full line of economical Retrofit Kits are available
Factory refurbishment available

Support and Service

Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.

If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.

Our extensive inventory permits rapid shipment, typically within 24 hours, thus minimizing expensive down time.
