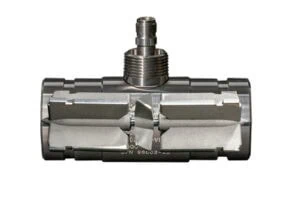

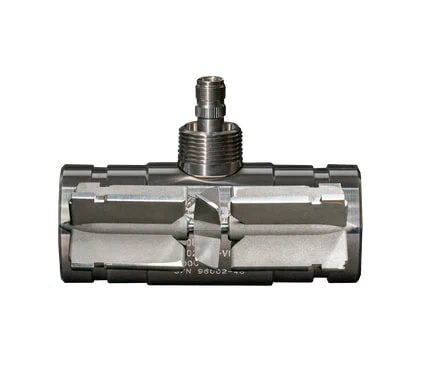

WK Series Liquid Wafer-Style Turbine Retrofit Kit
Accuracy of +/- 1% of rate
Temperature Application -100°F to +850°F
Repeatability of 0.1%
- Line sizes 3/8″ to 8″
- Flow rates from 0.3-5,500 GPM (10-190,000)BPD
Description
The WM Liquid Wafer Style Turbine flow meter is a highly-versatile product line that offers all stainless steel, precision-machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8″ through 10.0″.
The WM Series turbine meters are designed specifically for installation between two raised-face flanges and the robust design handles up to 3,700 PSI, depending on the selected flange size.
The WM Series is unique in that rather than snap rings holding the internals, three (3) machine screws hold each rotor support in place, making this a heavy duty meter for most any liquid application.
The WM Series provides +/- 1.0% standard accuracy, and is repeatable to +/- 0.10% over the entire flow range. For every turbine flow meter manufactured by Turbines, Inc., a unique K-factor is established by means of a NIST-traceable factory calibration.
Specifications
Rotor Supports: 316 stainless steel
Meter Rotor: CD4MCu / 416 stainless steel
Rotor Shaft: Tungsten carbide
Bearings: Tungsten carbide
Factory refurbishment available
Additional Images, Charts, or Drawings
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment, typically within 24 hours, thus minimizing expensive down time.
Certifications
ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN
