Turbine Flow Meters

Volumetric Flow Measurement

At Turbines, Inc., we specialize in providing high-quality turbine flow meters designed to meet the demanding needs of various industries. Our turbine flow meters are recognized for their accuracy, reliability, and value, which makes our meters an ideal solution for a wide range of applications. Turbines, Inc, meters can be used in all flow media types, covering flow ranges from .007 to 12,000gpm. Turbines, Inc. maintains an extensive inventory across multiple locations for industry-leading delivery times. In addition to our standard products, we offer custom-engineered flow measurement systems.

Request A Quote View Catalog

Liquid Turbine Flow Meter

TM Series

Accuracy +/- 1% of rate
Wide Temperature Application -100°F to +250°F (+850°F with special coil)
Repeatability of 0.1%

Line sizes from 3/8″ to 10″
Flow rates from 0.3 to 5,500gpm
Pressures up to 5,000psi

Liquid Wafer Turbine Flow Meter

WM Series

Accuracy of +/- 1% of rate
Temperature Application -100°F to +250°F (+850°F with special coil)
Repeatability of 0.1%

Line sizes 3/8″ to 10″
Flow rates from 0.3 to 5,500gpm (10 to 190,000)BPD
Pressure up to 3,700psi

High Accuracy Liquid Flow Meter

HA Series

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +450°F (850°F with special coil)
Highly configurable materials of construction

Line sizes from 1/2″ to 12″
Flow rates from 1 to 12,000gpm
Pressure up to 20,000psi

High Accuracy Wafer Liquid Flow Meter

WHA Series

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +450°F (850°F with special coil)
Highly configurable materials of construction

Line sizes from 1″ to 4″
Flow rates from 1 to 1,250gpm
Pressure up to 6,170psi

Cryogenic Flow Meter

TMC Series

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +450°F
Specifically Engineered for Cryogenic Applications

Line sizes from 1/2″ to 12″
Flow rates from 1 to 12,000gpm
Pressure up to 20,000 psi

High Pressure Flow Meter

HP Series

Accuracy +/- 1% or 0.5% of rate
Temperature Application -100°F to +250°F
Highly configurable materials of construction

Line sizes 2″ or 3″
Flow rates from 15 to 600gpm
Pressure up to 15,000psi

Low Flow Meter

LF Series

+/- 0.25% Repeatability of rate
Temperature Application -70°F to +450°F
Specifically Engineered for Low Flow Applications

Line size 1/2″
Flow rates from .007 to 3.00gpm
Pressure up to 5,000psi

Encapsulated Low Flow Meter

LFENC Series

+/- 0.25% Repeatability of rate
Temperature Application -450°F to +450°F
Specifically Engineered for Low Flow Applications

Line size 1/2″ or 1″ FNPT
Flow rates from .007 to 3.00 GPM
Pressure up to 20,000 psi

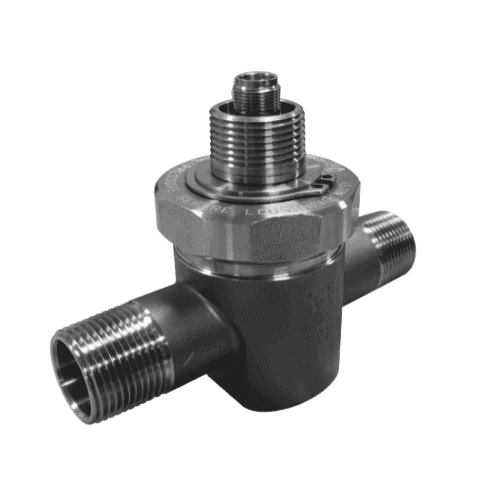

Quick Change Flow Meter

QCM Series

Accuracy +/- 1.5% of rate
Wide Temperature Application -40°F to +300°F
Highly configurable materials of construction

Line sizes 1″ or 2″
Flow rates from 5 to 225gpm
Pressure up to 1,500psi

Digital Display Flow Meter

ITM Series

Accuracy of +/- 1.0% of rate
Temperature Application -22°F to +150°F
Repeatability of +/- 0.1%

Line sizes 7/8″, 1″ or 2″
Flow rates from 3 to 30gpm, 5 to 50gpm, and 15 to 180gom

Gas Flow Meter

TMG Series

Accuracy of +/- 1.0% of rate
Temperature Application -450° F to +450° F (850°F with special coil)
Repeatability of 0.1%

Line sizes 1″ or 2″
Flow rates from 0.5 to 250 ACFM
Pressure up to 3,700psi

Low Profile Gas Flow Meter

SLGM Series

Accuracy of +/- 1.0% of rate
Temperature Application -450° F to +450° F (850°F with special coil)
Repeatability of 0.1%

Line sizes 1″ or 2″
Flow rates from 0.5 to 250 ACFM
Pressure up to 3,700psi

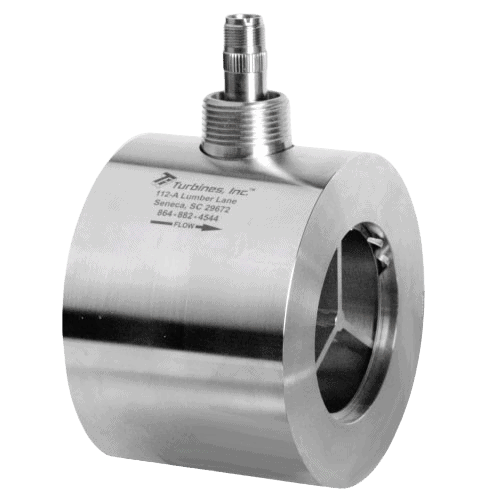

Wafer Style Gas Flow Meter

WMG Series

Accuracy of +/- 1.0% of rate

Temperature Application -450°F to +450°F (850°F with special coil)
Repeatability of 0.1%

Line sizes 1″ to 4″
Flow rates from 0.5 to 1,250 ACFM
Pressure up to 3,700psi

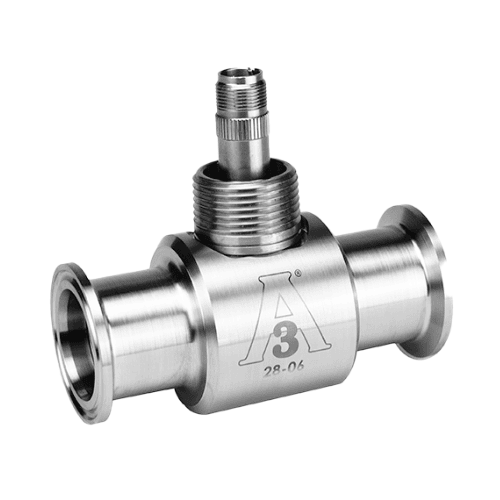

3A Sanitary Flow Meter

TMSA Series

Accuracy +/- 0.5% of rate
Temperature Application -100°F to +400°F
Repeatability of +/- 0.1%

Line sizes 1/2” through 3”
Flow rates from 1.25 to 650gpm

Frequently Asked Questions

A turbine flow meter measures flow by using a rotor or turbine wheel that spins as fluid or gas passes through it. The rotational speed of the turbine is proportional to the velocity of the fluid. Sensors, often magnetic or optical, detect the turbine’s rotation, and this data is converted into a flow rate.

Turbine flow meters can measure a wide range of fluids and gases, including water, oil, chemicals, natural gas, and other clean, low-viscosity fluids. However, they are not ideal for slurries, highly viscous liquids, or fluids with debris that can damage the turbine blades.

Turbine flow meters should be regularly cleaned to prevent debris buildup, especially in applications with potential contaminants. Routine maintenance includes:

Bearing Inspection and Replacement: Bearings can wear out and affect the turbine’s rotation.
Calibration: Periodic calibration using a known reference standard ensures accuracy over time. Calibration can be done on-site or sent to specialized facilities, depending on the application and criticality.

High Accuracy: Typically accurate within ±0.5% to ±1% of the reading.
Wide Range of Flow Rates: Can measure from very low to high flow rates.
Cost-Effective: Generally affordable compared to other flow meters.
Good for Clean Fluids: Ideal for applications with clean, low-viscosity fluids.
Fast Response Time: Provides near real-time flow data.

Turbine flow meters measure clean, low-viscosity fluids like water, fuels, oils, chemicals, gases (natural gas, hydrogen), cryogenics, and pharmaceutical or food-grade liquids, with materials tailored for specific applications.

Turbine flow meters are made from durable materials like stainless steel (316 SS), aluminum, bronze, or nickel alloys to resist corrosion and wear. Seals and bearings often use materials such as tungsten carbide, PTFE, or ceramic for enhanced durability and compatibility.
