Accurate flow measurement is essential for maintaining process efficiency, product quality, and operational safety. Whether monitoring fuel consumption, controlling chemical dosing, or measuring cryogenic liquids, engineers rely on flow meters to provide dependable data. However, even the most accurate flow meter can produce inaccurate readings when installed in a piping system with significant flow disturbances.

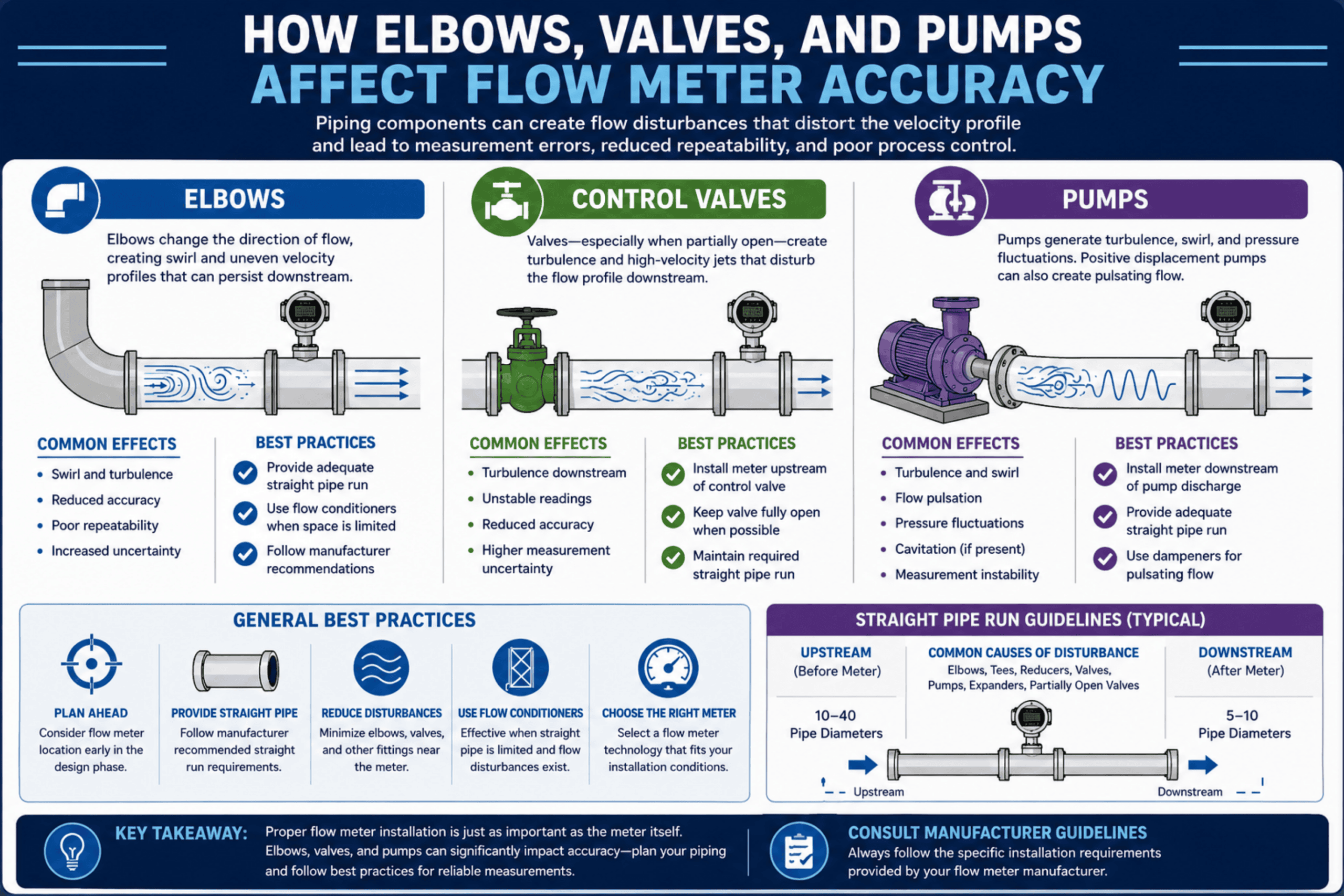

Among the most common sources of measurement error are elbows, control valves, and pumps. These components alter the velocity profile of the fluid flowing through a pipe, creating turbulence, swirl, and other disturbances that can negatively affect meter performance. Understanding how these devices impact flow measurement can help engineers improve accuracy, reduce uncertainty, and avoid costly troubleshooting efforts.
Understanding Flow Profiles and Measurement Accuracy
Most flow meters are designed and calibrated under ideal flow conditions. During calibration, fluid enters the meter with a predictable and fully developed velocity profile. In real-world installations, however, piping configurations often introduce disturbances that change the way fluid moves through the pipe.
When a flow profile becomes distorted, fluid velocities are no longer evenly distributed across the pipe diameter. Some areas may experience higher velocities while others experience lower velocities. Depending on the flow meter technology being used, these distortions can result in measurement errors, reduced repeatability, and inconsistent process control.
For velocity-based technologies such as turbine flow meters, maintaining a stable flow profile is especially important because the meter’s output depends directly on the fluid’s velocity.
How Elbows Affect Flow Meter Accuracy
Pipe elbows are among the most common causes of flow disturbances. While a single elbow may appear harmless, it forces fluid to change direction, creating uneven velocity distribution and rotational flow patterns downstream.
When fluid travels through a 90-degree elbow, the velocity along the outside of the bend typically becomes greater than the velocity along the inside. This imbalance creates a distorted flow profile that may persist for several pipe diameters after the elbow.
The problem becomes even more severe when multiple elbows are installed in different planes. These configurations can generate significant swirl that is difficult for many flow meters to compensate for.
Common issues caused by elbows include:
- Reduced flow meter accuracy
- Increased measurement uncertainty
- Inconsistent readings during varying flow conditions
- Poor repeatability between calibration intervals
- Premature wear in some mechanical flow meter designs
In retrofit applications, engineers often have limited straight pipe available for installation. While this constraint may be unavoidable, understanding the potential impact of nearby elbows can help determine whether a flow conditioner or alternative meter technology should be considered.
How Control Valves Influence Flow Measurement
Control valves play a critical role in regulating flow, pressure, and process conditions. Unfortunately, they are also a major source of turbulence within piping systems.
As fluid passes through a partially open valve, it accelerates through the restricted opening and exits with a highly disturbed velocity profile. The resulting turbulence can extend several pipe diameters downstream, affecting the performance of nearby flow meters.
The severity of the disturbance often depends on valve position. A fully open valve may create relatively little disruption, while a valve operating at a partially open position can generate substantial turbulence.
Engineers should consider the following best practices when installing flow meters near control valves:
- Whenever possible, locate the flow meter upstream of the control valve.
- Follow the meter manufacturer’s recommended straight-run requirements.
- Avoid placing a flow meter immediately downstream of a throttling valve.
- Consider flow conditioning devices when space constraints exist.
- Evaluate alternative meter technologies if proper installation requirements cannot be met.
Improper valve placement can result in unstable measurements, unnecessary recalibration requirements, and reduced confidence in process data.
How Pumps Create Flow Disturbances
Pumps introduce some of the most complex flow disturbances found in industrial piping systems. Depending on the pump type and operating conditions, engineers may encounter turbulence, swirl, pulsation, and pressure fluctuations that interfere with flow measurement.
Centrifugal pumps often create rotational flow patterns at the pump discharge. This swirl can persist downstream and negatively impact velocity-sensitive flow meters. Positive displacement pumps present a different challenge by producing pulsating flow conditions that may cause fluctuating meter outputs.
Several pump-related factors can affect flow meter performance:
- Turbulence at the pump discharge
- Rotational flow caused by impeller design
- Pulsation from reciprocating equipment
- Pressure fluctuations throughout the system
- Cavitation under improper operating conditions
Cavitation deserves special attention because it can affect both measurement accuracy and equipment longevity. When vapor bubbles form and collapse within the fluid stream, the resulting disturbances can create unstable readings while also contributing to component wear.
For this reason, flow meters should generally be installed with sufficient straight pipe downstream of pumps to allow the flow profile to stabilize before measurement occurs.
Which Flow Meter Technologies Are Most Sensitive?
Not all flow meters respond to flow disturbances in the same way.
Turbine flow meters are particularly sensitive because they measure flow velocity through the rotation of a rotor. Swirl and uneven velocity profiles can directly influence rotor speed and introduce measurement errors.
Differential pressure flow meters also require stable flow conditions because disturbances affect pressure distribution across the primary element.
Ultrasonic flow meters may experience reduced accuracy when distorted velocity profiles interfere with transit-time calculations.
Magnetic flow meters are generally more tolerant of flow disturbances but still benefit from proper installation practices.
Coriolis flow meters are often considered the least sensitive to upstream piping disturbances because they directly measure mass flow rather than relying on velocity profiles. However, even Coriolis meters have installation guidelines that should be followed to achieve optimal performance.
Straight Pipe Run Requirements Matter
One of the most effective ways to reduce measurement errors is to provide adequate straight pipe upstream and downstream of the flow meter.
Straight pipe allows turbulence and swirl to dissipate before fluid reaches the sensing element. While exact requirements vary by technology and manufacturer, the principle remains the same: the more stable the flow profile, the more reliable the measurement.
Engineers should always consult manufacturer recommendations rather than relying solely on generic industry guidelines. Factors such as elbows, pumps, valves, reducers, and flow conditioners can all influence the required straight-run distance.
Improving Flow Meter Performance
Many flow measurement problems can be avoided during the design phase by considering installation requirements early in the project. Proper meter placement, adequate straight pipe, and careful evaluation of nearby piping components can dramatically improve measurement accuracy.
When space limitations prevent ideal installations, flow conditioners may help reduce turbulence and improve flow profile symmetry. In other situations, selecting a flow meter technology that is less sensitive to flow disturbances may provide the best long-term solution.
How Accuracy Can Be Impacted
Flow meter accuracy depends on more than the meter itself. Elbows, valves, and pumps can significantly alter flow profiles and introduce measurement errors that compromise process performance. Understanding how these common piping components affect fluid behavior allows engineers to make better installation decisions and achieve more reliable results.
Whether specifying a new flow measurement system or troubleshooting an existing installation, evaluating upstream and downstream piping conditions is often the first step toward improving accuracy. Proper installation practices, combined with the right flow meter technology, can help ensure dependable measurements for years to come.
